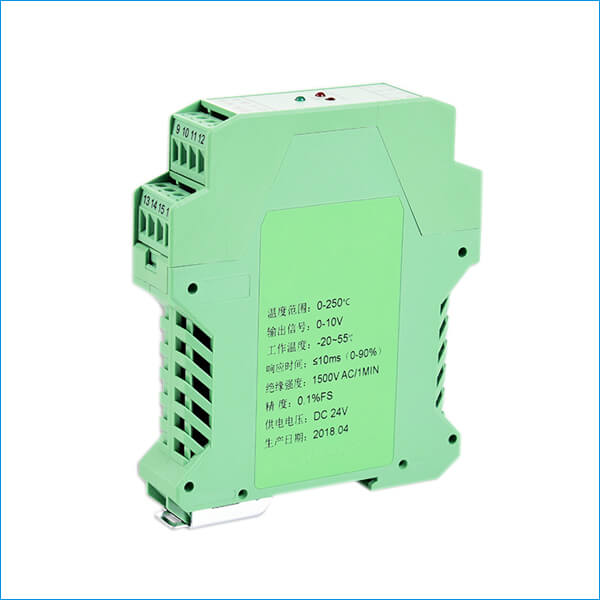

isolated type K thermocouple signal conditioner

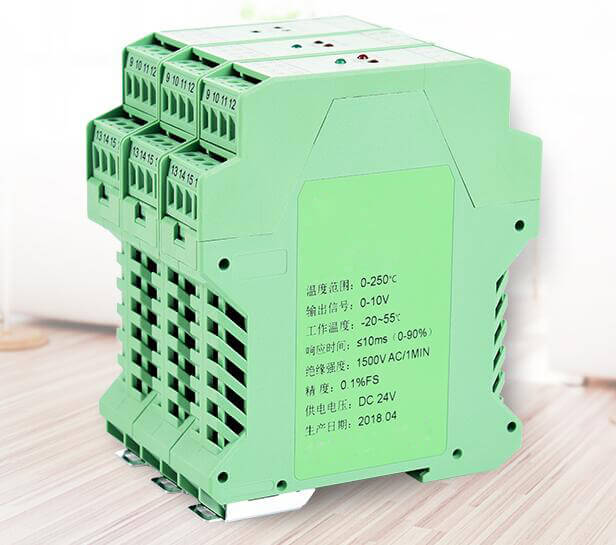

DIN Rail type k thermocouple signal conditioner

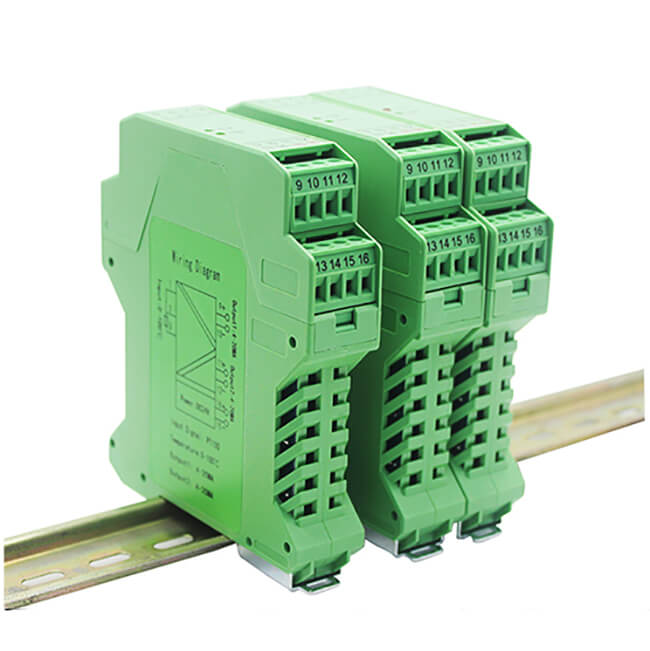

TC Type K to 0-20mA Converter

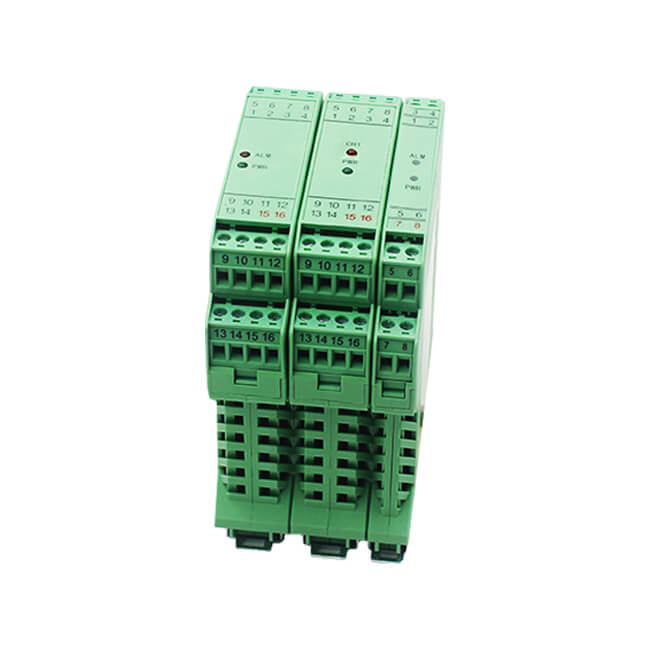

Type K Thermocouple to 4-20mA Converter

Isolated K Type Thermocouple Signal Conditioner Dual Input Dual Output

$43.65 – $44.15

BRT TCK-D22 Dual-channel isolated K type thermocouple signal conditioner accepts 2-channel K type thermocouple signal input and converts inputs into 2-channel 0-5Vdc, 0-10VDC or 4-20 mA,0-20mA output in linearity. It is available with single power supply option: 24VDC. Its isolation voltage among input, output, power supply is up to 1500VAC, and cold junction compensation embedded inside to ensure the accuracy. That signal converter provides a good solution to solve the interference and mismatch problems in temperature monitoring and controlling in industrial site.

SKU: DIN TCK-D22 Category: Tag:

Description

BRT TCK-D22 Dual-channel isolated type K thermocouple signal conditioner input is a low cost reliable type K thermocouple signal input, isolated standard current voltage signal output signal conditioning and isolation module. It has flame-retardant DIN rail-mounted outer case, operating status and alarm indicator, pluggable wiring terminals, , and dual channel signal conditioning design can save users cost and space in industrial applications. This thermocouple signal conditioner is widely used in temperature signal monitoring, data acquisition and long distance transmission, etc.

Main Features
• Accuracy grade: 0.2/0.5 %F.S.
• High linear conversion, high stability.
• Built-in cold-junction compensation circuit.
• 24VDC power supply, ±10% range.
• 1.5KV Isolation among input, output, power supply.
• Dual channel type-K (0-1200℃, 0-1300℃, etc.) input.
• Dual outputs 4-20mA, 0-20mA 0-5V, 0-10V, 1-5V, etc. dc current or voltage.
• Pluggable barrier wiring terminal blocks, easy-to-use.
• 35mm DIN Rail-mounted, standard universal flame-retardant case.
• EMC compatibility: in compliance with IEC61326-1.
• Operating temperature range: -20-+70℃.
• Dimension: 99×22.5×114.5mm（LxWxH).

Technical Parameters

Input signalK type thermocouple signal 0-1200℃/0-1300℃
Cold-junction compensationCompensation range: -25-+75℃ (1℃error per 20℃)
Compensation mode: internal built-in.
Output signal0-5VDC, 0-10VDC, 0-20mADC, 4-20mADC.
Input-Output channel2-channel input, 2-channel output
Output load capacityRL≤500Ω when output is current signal
RL≥10KΩ when output is voltage signal
Power supplyDC24V , ±10%
Current consumption≤70mA (24V power supply, 20mA output)
Accuracy0.5% F.S.
Temperature drift0.005% F.S./℃ (-20-+70℃)
Response time≤250mSec.
Isolation voltage1500VAC/1min, among input, output, power supply
Insulation resistance≥100MΩ among input, output, power supply
Operating temperature-20-+70℃
EMC CompatibilityIEC61326-1

Dual Channel Type K Signal Conditioner Wiring

Dual channel type K thermocouple to 4-20mA output
Dual channel type K thermocouple to 4-20mA output

Dimension

Dual channel K-type Thermocouple Signal Conditioner Size
Dual channel K-type thermocouple signal conditioner size

Additional information

Weight0.08 kg
Dimensions11.45 × 9.9 × 2.25 cm
INPUT

TYPE-K(0-1200℃), TYPE-K(0-1300℃), TYPE-K(0-1000℃), TYPE-K(0-600℃), TYPE-K(0-400℃)

OUTPUT

4-20MA, 0-20MA, 0-5V, 0-10V, 1-5V

POWER SUPPLY

24VDC

Other Parameters

If customized input, output, power supply required, please contact us for details.
