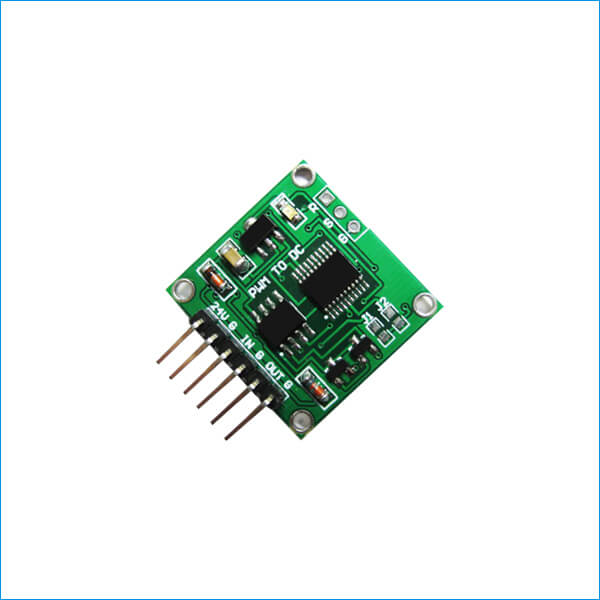

PWM to 0-5V Converter PWM to DC

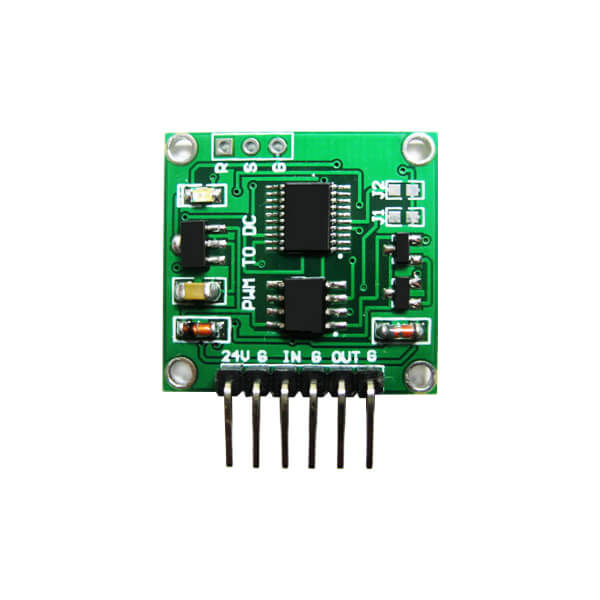

pwm to dc converter module

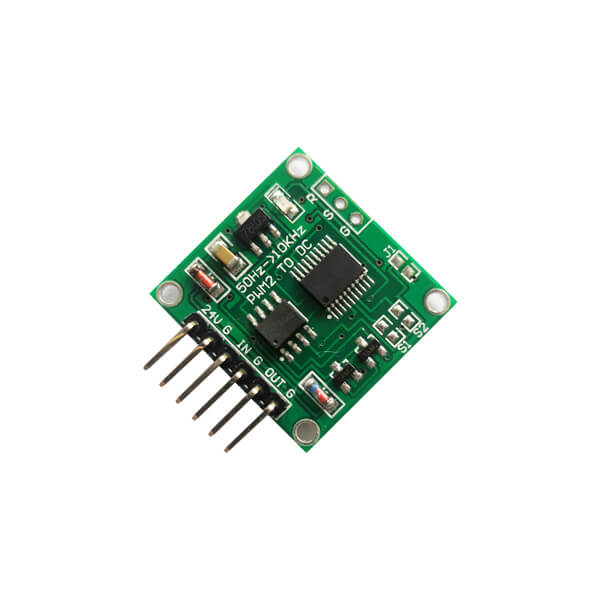

PWM to 0-10v Converter

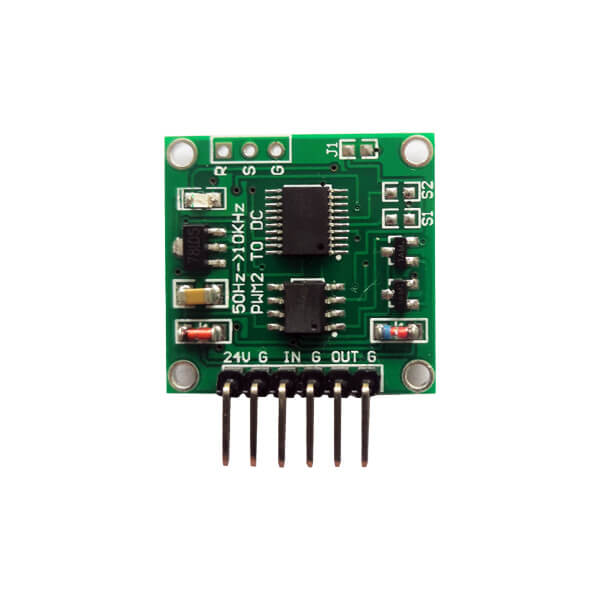

PWM2 to DC Converter Module

PWM to 0-5V Converter

(1 customer review)

$12.89 – $13.58

BRT PWM-V Series PWM to voltage converter module is designed to convert PWM signal to a voltage signal proportional to the duty cycle.
•PWM to 0-5V, PWM to 0-10VDC output conversion.
•Small size, high linearity, 0%-100% duty cycle.
•5Hz-500Hz or 50Hz-10kHZ PWM signal input.
•9-24VDC wide range power supply.

SKU: BRT PWM-V Category:

Description

BRT PWM-V Series PWM to 0-5V 0-10V converter module accepts 4-24VDC amplitude 5Hz-500Hz or 50Hz-10kHz PWM signal input and converts it into proportional standard dc voltage output. The PWM signal is processed by the internal linear regulation and conversion circuit and chips. It is in high linearity, high efficiency, small size and low cost. The output is standard 0-5VDC or 0-10VDC, user can switch it by short connected S2 or J2 welding pad, power supply is 9V-24VDC wide range. This PWM to voltage signal converter module is widely used in remote data acquisition and controlling devices, transmitter, DAC based circuits, meters and instruments, etc. This pulse width modulation module provide a low cost simple solution in developing a controlling system based on PWM.

Main Features

• Low cost, mini size, easy to do further integration.
• 5Hz-500Hz or 50Hz-10kHz PWM input, 0-5VDC or 0-10V output.
• PWM signal linear conversion, fast response.
• 9-24VDC wide range power supply.
• Simplify the developer’s circuit.
• 4-24V amplitude voltage input, 0%-100% duty cycle.
• Operating temperature range: -20-+70℃
• User can develop it by adding external circuits.

PWM to 0-5V Converter Technical Parameters

ItemsTypical Value
Input signal PWM Signal
Input amplitude4-24VDC
Frequency range5Hz- 500Hz OR 50Hz～10KHz
Duty ratio0～100%
Input modeS1 or J1 soldering pad: the default is open circuit, no function.
Output signal0-5VDC or 0-10VDC
Output load capacity about 10mA
Output selectionS2 or J2 soldering pad: the default state is open circuit 0-5VDC output. If 0-10VDC output is required, the S2 or J2 soldering pad should be in short-circuit.
Output accuracy (output resolution )0-5VDC output: 0.050V/D (V/Duty ratio)

0-10VDC output: 0.100V/D (V/Duty ratio)

Power supply9-24VDC
Size (LxWxH)26x23x10mm  Pin spacing: 2.54mm
Jointing temperature (10sec.) +300℃
Operating temp. range-20–+70℃
Operating humidity0–90% RO
Storage temp. range-20–+75%
Storage humidity0–95% RO
* Note: when the output is 0-10VDC, the power supply voltage must be ≥15VDC.

PWM to 0-5v Converter Pin Definition

PWM to 0-5V converter
PWM to 0-5V 0-10V Converter Pins

*More frequency PWM to DC signal converters, please click: PWM to DC /DC to PWM Signal Converters

Additional information

Weight0.01 kg
Dimensions2.6 × 2.3 × 1.0 cm
PWM Input Range

5Hz to 500Hz, 50Hz to 10KHz

Important Note:

The default output is 0-5VDC.
If 0-10VDC is required, S2 or J2 welding pad must be shorted.

Packing List

1 Unit x Original PWM to 0-5V Converter Module
1 Set x Professional user manual (English)
