Description

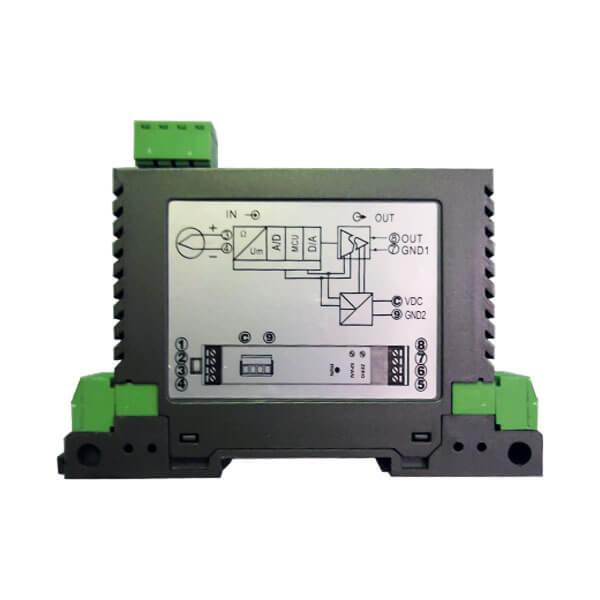

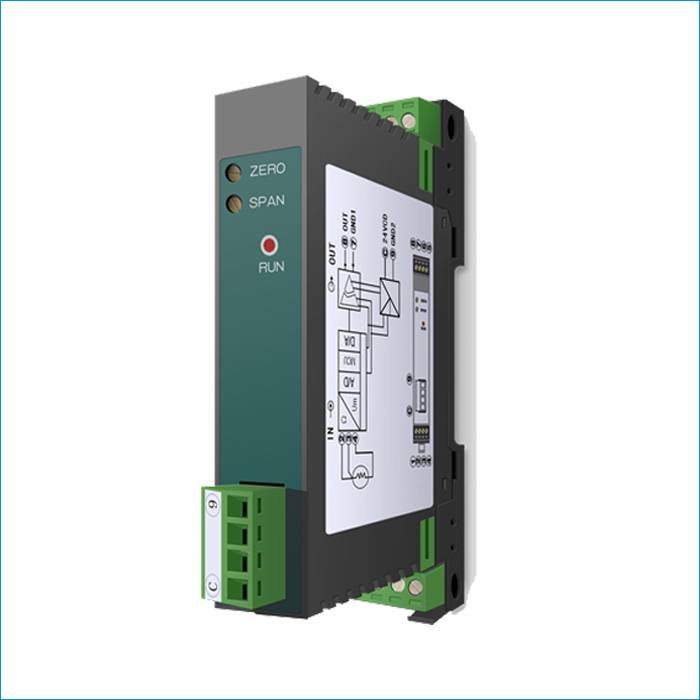

BRT TC-DS11 Isolated thermocouple input signal conditioner is a zero span adjustable thermocouple sensor signal conditioning and conversion module. Its input thermocouple sensor type available: type K, J, B, T, E, S, R, N, etc., output zero and span are adjustable. It converts thermocouple signal into standard 4-20mA, 0-10mA, 0-5V, 0-10V, etc. Its TC input terminal, output terminals, power supply terminals are completely isolated and separate to avoid signal noise and ensure accuracy. It provides a solution of thermocouple temperature sensor signal transmission and signal matching in industrial site. Its power supply input is single 24VDC or 12VDC. 1-channel input, 1-channel output and slim 35mm DIN Rail-mounted shell, save space and cost in industrial applications.
Main Features
• Adjustable gain and offset, high linearity.
• Accuracy: ±0.5%, ±0.2% F.S. TYP, high linearity.

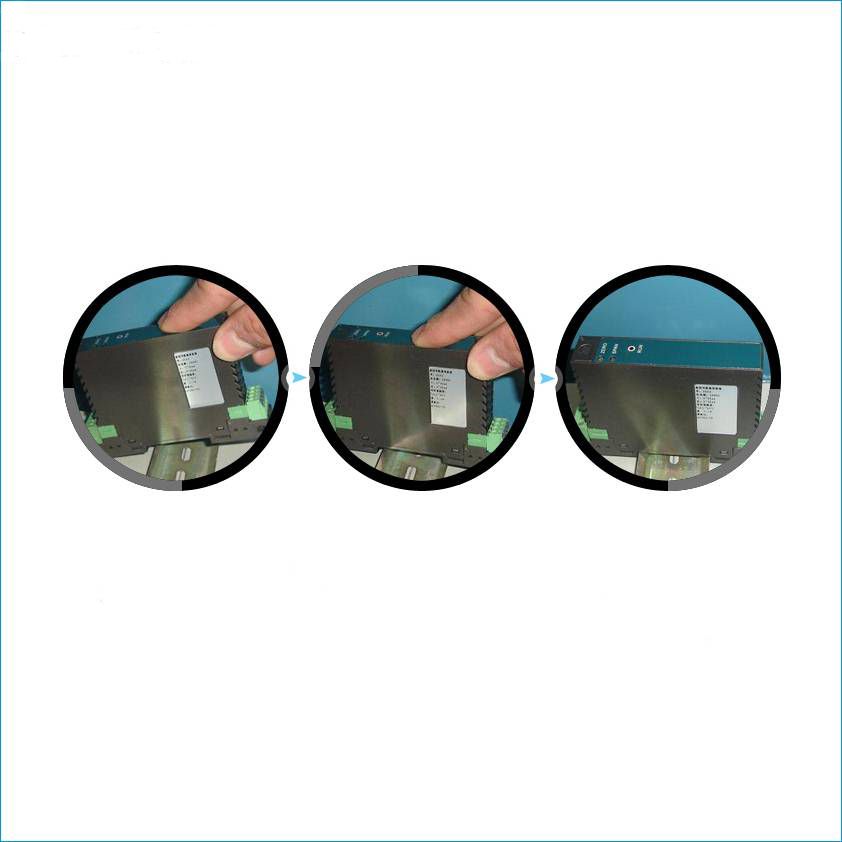

• Slim compact din rail-mounted case, save space and cost.
• Low temperature drift, low power consumption, save energy.
• Standard 12V or 24VDC single power supply.
• 3-way 1.5KVDC isolation voltage among input, output, power supply.
• Flame retardant package, in compliance with CE, RoHs.
General Parameters
Power supply:
•Power supply voltage: 12V or 24VDC, ±10% Range.
•Current consumption: <80mA (@24V power supply)
•Power consumption: <2W (@24V power supply)
Available Input:
Thermocouple signal input types: Type K, Type J, Type E, Type S, Type B, Type R, Type N, etc.
Output
•Current output: 4-20mA, 0-20mA, etc.
•Voltage output: 0-5V, 0-10V, 1-5V, etc.
•Current output load capacity: ≤500Ω
•Voltage output current load: ≤5mA
•Output ripple: ＜20mVp-p (@ 250Ω load)
Main Technical Parameters
•Accuracy: ±0.2% , ±0.5% F.S. TYP.
•Temperature drift: ±0.015%/℃
•Response time: ≤0.03S (10-90%)
•Stability time: ≤0.5S
•Power supply influence: ＜±0.1% ( In available voltage range)
•Isolation voltage: 1.5KVDC/min among input, output, power supply.
•Insulation resistance: ＞100MΩ
•Output ripple: ≤20mV/Vp-p
•Operating Temp. range: -10-+70℃
•Operating humidity: ≤85RH%

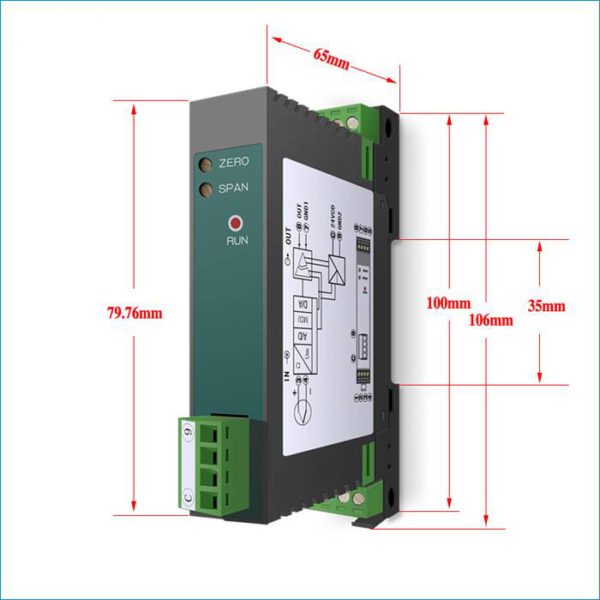

•Dimension (L x W x H): 105X16.6X65mm
•Case Material: Flame retardant ABS+PC
•Anti-dust design: Yes
Max. Input, Output, Power Supply Range Supported:
| Input TC Type | Max. Temperature Range Available | PWR (DC) | Available Output | |
| Type-K | -200-1372℃ | 24V/12V | 4-20mA | |
| Type-J | -200-1200℃ | 24V/12V | 0-20mA | |
| Type-E | -270-1000℃ | 24V/12V | 0-2.5V | |
| Type-S | -50-1768.1℃ | 24V/12V | 0-5V | |
| Type-B | 250-1820℃ | 24V/12V | 1-5V | |
| Type-R | -50-1768.1℃ | 24V/12V | 0-10V | |
| Type-N | -200-1300℃ | 24V/12V | 0-75mV | |
| * The temperature ranges above are the min. and max. temperature range of each thermocouple input we can make. If there is no matched temperature range options listed, please choose [No matched temp. range] then do write your temperature range in final Checkout page or send us email. Thank you. | ||||

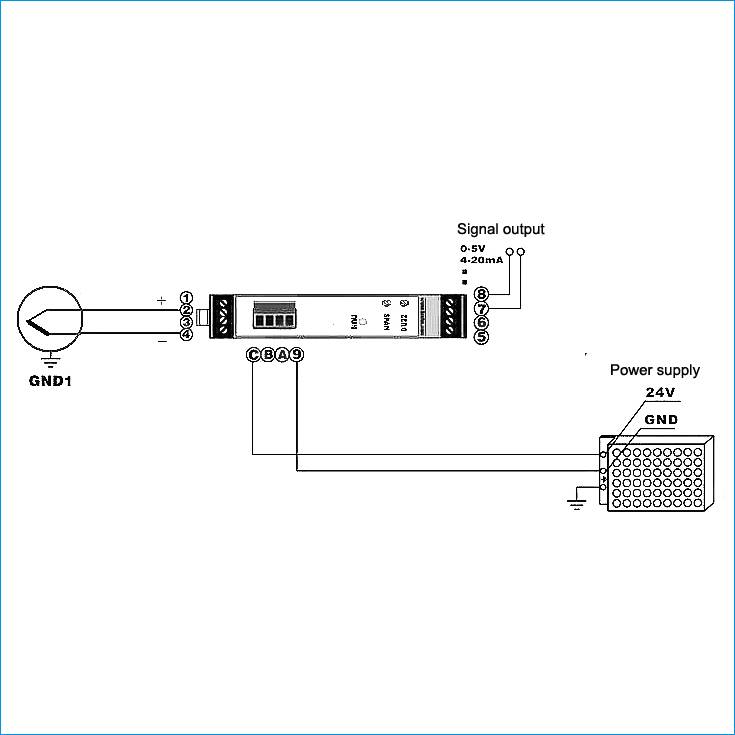

Referential Wiring Circuit
