Adjustable 0-5V 0-10V +/-10V Signal Generator

$16.89

BRT 10VG-M6 Intelligent 0- +/10V Signal generator is a precision programmable low-cost panel-mounted voltage signal generator meter with LED display. Its display accuracy is 0.01V and LED display is 0.4 inch 4 digits clear LED tube. Its output is adjustable and output range is programmable and can be switched into 0-1V, 0-+/-5V, 0-5V, 0-10V, 0-2.5V, 0-3.3V, 1-5V, 2-10V, etc. It outputs voltage signal without delay and can be 0V output accurately. Its operating power supply is 8-28V wide range. This 0-5V -10V to 10V voltage signal generator is a user-friendly voltage generator simulator or calibrator meter.

Discount per Quantity

QuantityDiscountPrice
5 - 105%$16.05
11 - 208%$15.54
21 - 5012%$14.86
SKU: BRT 10VG-M6 Category:

Description

BRT 10VG-M6 Intelligent 0-+/-10V Signal generator can output positive and negative 10V voltage signal and has various types of voltage signal ranges: 0-1V, 0-+/-5V, 0-5V, 0-10V, 0-2.5V, 0-3.3V, 1-5V, 2-10V, etc. Its output ranges can be switched through the encoders’ button, user can set it into the available output ranges based on applications and set it into -5V-+5V, 0-10V, 0-5V signal generator. And its input operating voltage is 8-28V wide range, power consumption is less than 1W. Its output accuracy is up to 0.01V, and output is adjustable through precision digital encoder. It has standard panel-mounted meter shell, very convenient to do integration or further development. This voltage signal generator is widely used for Servo, PLC, DCS controlling and calibration, motor controlling, etc.

Features & Benefits
• Stable and steady output: 0.1mV fluctuation, very low ripple.
• It’s better to add some capacitor in output terminal (connect it in right polarity).
• Multiple output: ±10.00V/±5.00V/0-10.00V/2-10.00V/0-1.00V/0-2.5V/0-3.3V, etc., programmable output range.
• Single output can be 0V to 1V, it is ideal to used it in small signal application.
• Digital encoder used, high precision output adjustment.
• Have fine and coarse adjustment setting, max, adjusting turns can be 1-100 turns.
• 4 digits LED display, 0.01V changing steps.
• Have automatic parameters setting saving function in case of power off.

Technical Parameters

Output:Max. range -10V to +10VDC. (0-1V, 0-5V, 0-10V, -5V-+5V, 0-2.5V, 0-3.3V, 2-10V, etc. switchable through button)
Max. output load current:20mA
Output accuracy:0.01V
Operating power supply:DC8-28V, 1Watt.
Encoder pulse:Rotate one turn equals 20 x pulses.
LED display:4 digits, 0.4 inch
Front view size:79.5x42x24 mm (L x H x D)
Panel cut-out size:77x40mm (+/-1mm error), panel thickness 1.4mm recommended.
Operating temperature:-10 ℃ to +50 ℃ TYP
Storage temperature:-20 ℃ to +60 ℃ TYP
Humidity:85% R.H. non-condensation

Typical Applications

+-10V Volt. generator circuit
0 – +/-10V Volt. signal generator wiring circuits

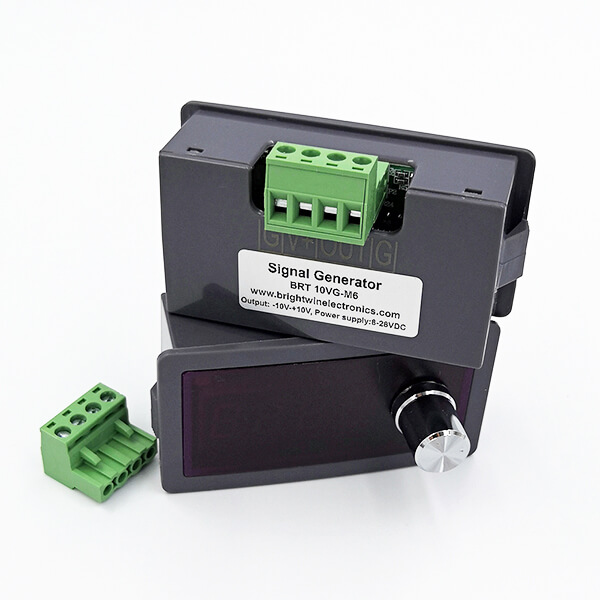

Terminal Definition

Terminal CodeDescription
V+DC 8-28V operating power supply input +
GPower supply input –
OUTVoltage signal output +
GVoltage signal output –



Additional information

Weight0.12 kg
Dimensions7.9 × 4.2 × 2.4 cm
Output

Max. range -10V to +10VDC or 0-5V,0-1V, 0-10V, -5V-+5V switchable and programmable output

Operating Power Supply

8-28VDC wide range, 24VDC recommended.

Output Accuracy

0.01V high precision

Installation Panel Cut-out

77x40mm (LxW, +/- 1mm error)

Packing Details

1 Unit x Origianl Intelligent Adjustable Accurate 0-10V Voltage Generator Panel-mounted
1 Set x Professional user manual

Highlight

Intelligent programmable, 0.01V accuracy output, standard panel-mounted meter.
