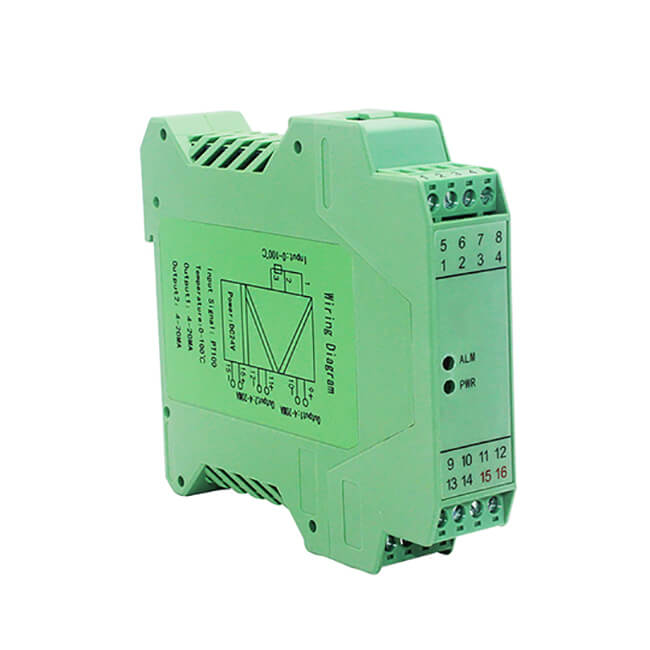

Thermocouple K to 0-5v converter dual output
TC Type K to 0-10v converter
TC Type K to 0-20mA Converter

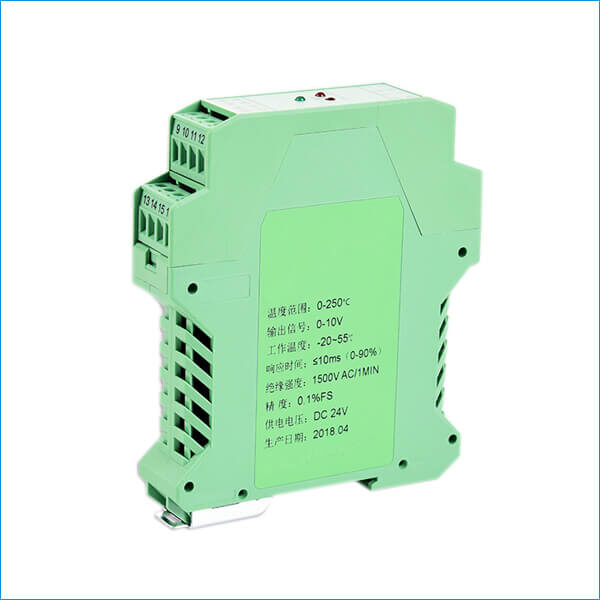

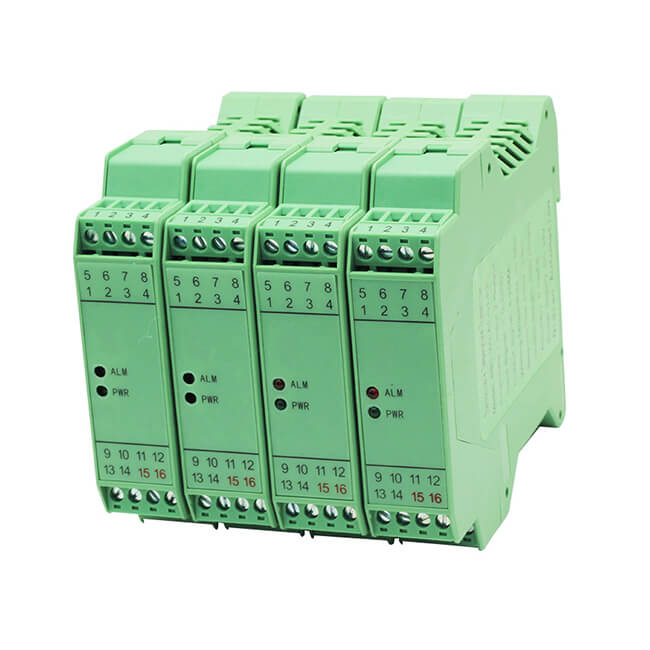

Isolated K Type Thermocouple Signal Conditioner Single Input Dual Output

$38.80 – $40.00

BRT-TCK-D12 Series Isolated K type thermocouple signal conditioner accepts 1-channel K type thermocouple signal input and converts input into 2-channel 0-5VDC 0-10VDC or 4-20 mA, 0-20mA output in linearity. Its operating power supply required is standard 24VDC power supply. Isolation voltage among input, output, power supply is up to 1500VDC, and cold junction compensation embedded inside to ensure high accuracy and stability. That thermocouple signal conditioner is a good solution to solve the interference and mismatch problems in temperature monitoring and controlling in industrial site.

SKU: BRT TCK-D12 Category: Tag:

Description

BRT TCK-D12 Isolated K type thermocouple signal conditioner is a high linear reliable 1-channel K type thermocouple sensor signal input, 2-channel standard current 0-20mA, 4-20mA or voltage 0-5V, 0-10V output signal isolation and conversion module. Its input, output channels, operating power supply are completed isolated.  It is widely used in temperature signal controlling and monitoring applications.

Main Features
• Accuracy grade: 0.2/0.5 F.S. high reliability.
• Built-in cold-junction compensation circuit. Have TC input alarm indicator.
• 24VDC power supply, ±10% range. Have power supply status indicator.
• One-channel type-K sensor signal 0-1200℃ or 0-1300℃ input.
• Dual output standard 4-20mA, 0-20mA, 0-5V, 0-10V, 1-5V, etc. dc current or voltage signal.
• Pluggable barrier wiring terminal blocks, easy-to-use.
• 1500V isolation among thermocouple signal input, two-channel current or voltage signal output, power supply.
• 35mm DIN Rail-mounted, standard universal flame-retardant package.
• EMC compatibility: in compliance with IEC61326-1.
• Operating temperature range: -20-+70℃.

Technical Parameters

Input signalK type thermocouple signal 0-1000/1200℃/0-1300℃, etc.
Cold-junction compensationTC Compensation range: -25-+75℃ (1℃error per 20℃)
Internal compensation mode: internal built-in.
Output signal0-5VDC, 0-10VDC, 0-20mADC, 4-20mADC.
Input-Output channel1-channel input, 2-channel outputs
Output load capacityRL≤500Ω when output is current signal
RL≥10KΩ when output is voltage signal
Power supplyDC24V, ±10%
Current consumption≤70mA (24V power supply, 20mA output)
Accuracy0.2F.S% or 0.5% F.S.
Temperature drift0.005% F.S./℃ (-20-+70℃)
Response time≤250mSec.
Isolation voltage1500V/1min, among input, output, power supply
Insulation resistance≥100MΩ among input, output, power supply
Operating temperature-20-+70℃
EMC CompatibilityIEC61326-1

Referential Wiring Circuit

"<yoastmark

Dimension

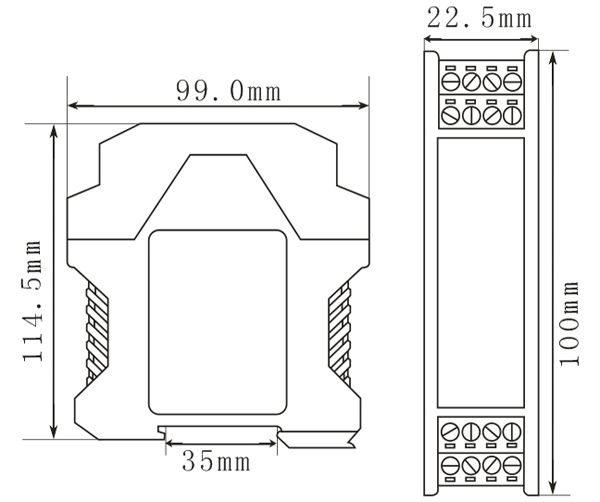

K-type Thermocouple to Analog Converter Dimension
Isolated K-type thermocouple signal conditioner dimension

Additional information

Weight0.08 kg
Dimensions11.45 × 9.9 × 2.25 cm
Input

Type-K(0-1200℃), Type-K(0-1300℃), Type-K(0-1000℃), Type-K(0-900℃), Type-K(0-600℃), Type-K(0-400℃)

Output

4-20mA, 0-20mA, 0-5V, 0-10V

Power Supply

24VDC

Other Parameters

If customized input, output, power supply required, please contact us for details.
