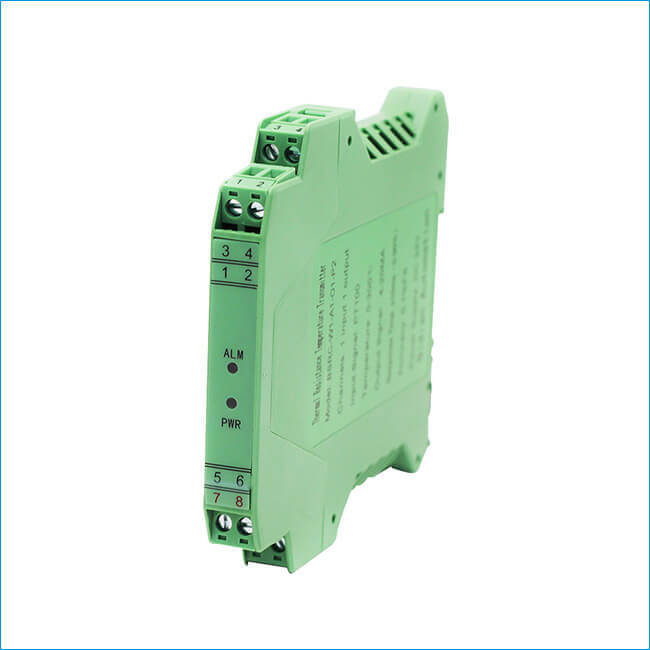

Thermocouple signal conditioner

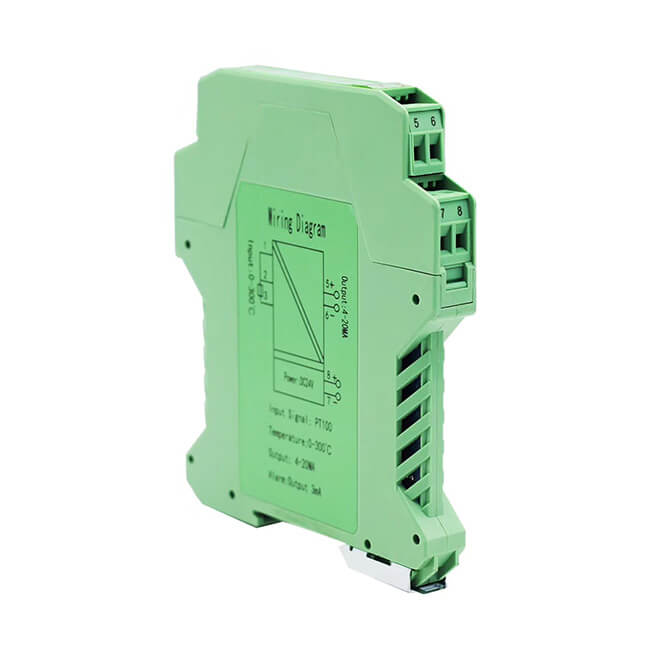

Isolated thermocouple signal conditioner

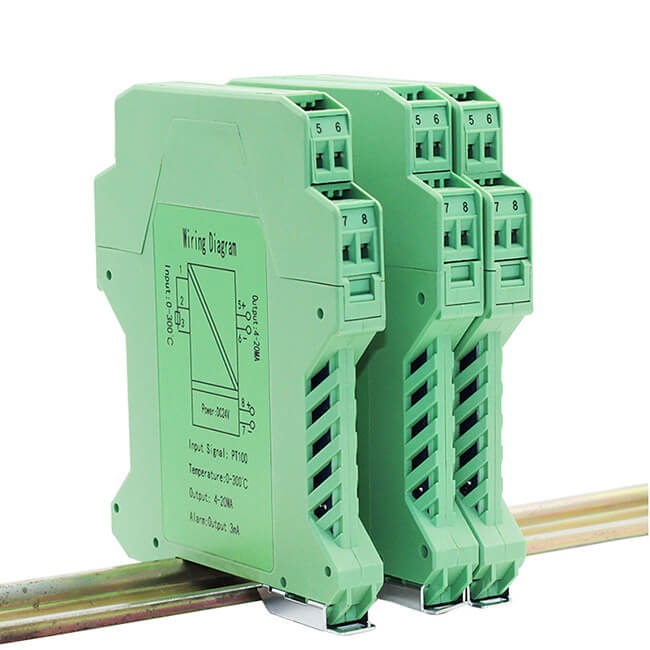

isolated thermocouple to ma converter

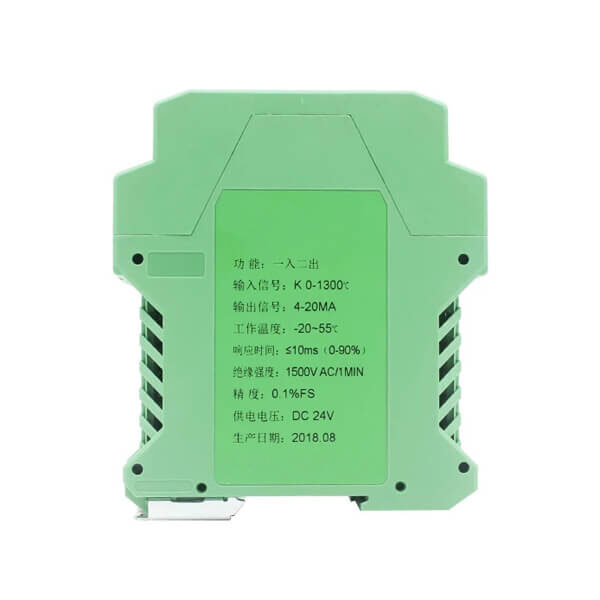

DIN Rail Thermocouple Signal Conditioner

Isolated Thermocouple Signal Conditioner Single Input Output

$33.58

BRT TC-D11 Isolated Thermocouple signal conditioner is designed to solve the signal mismatch and interference problems exist in sensor or transmitter signal controlling and monitoring. That slim size signal conditioner accepts B, E, J, K, N, R, S, T type thermocouple signal input and provides a linear and isolated 0 10 Vdc or 4 to 20 mA output. Its operating power supply is standard 24Vdc. The 3-way isolation among input, output, power supply is up to 1500VAC. Typical accuracy: 0.5 F.S.

SKU: BRT TC-D11 Category: Tag:

Description

BRT TC-D11 Series Thermocouple Signal Conditioner converts a type of thermocouple input signal to a cold junction compensated, linear, amplified analog dc current voltage output. Its input thermocouples signal has following types: type-K, type-E, type-J, type-T, type-B, type-R, type-S, type-N, output standard 4-20mA, 0-20mA 0-5V, 0-10V, 1-5V, etc. dc current or voltage to be connected with PLC, DCS, meters, instruments, etc. The terminal blocks of thermocouple to analog converter is pluggable, easy-to-use. And among its input, output, power supply, the isolation voltage is up to 1500VDC.  35mm DIN rail-mounted flame-retardant package, slim design make the analog converter become the most suitable signal conditioning and conversion solution in industrial site.

Main Features
• Accuracy grade: 0.2, 0.5 F.S. high reliability.
• Built-in cold-junction compensation circuit inside signal conditioner.
• Standard 24VDC operating power supply.
• Type-K, type-E, type-J, type-T, type-B, type-R, type-S, type-N input.
• Output standard 4-20mA, 0-20mA 0-5V, 0-10V, 1-5V, etc. dc current or voltage
• Pluggable barrier wiring terminal blocks, easy-to-use.
• Can be 1-input 1-output, 1-input 2-output, 2-input 2-output.
• Standard universal flame-retardant package, 35mm DIN Rail-mounting.
• EMC compatibility: in compliance with IEC61326-1.
• Operating temperature range: -20-+70℃.

Technical Parameters

Input signalB, E, J, K, N, R, S, T type thermocouple signal(Optional)
Cold-junction compensationTYP Compensation range: -25-+75℃ (1℃error per 20℃), ±1℃(Pre-heat 10 min.) Connect the compensation wire to the input terminal directly.
Output signal0-5VDC, 0-10VDC, 0-20mADC, 4-20mADC
Output load capacityRL≤500Ω when output current signal
RL≥1MΩ when output voltage signal
Power supplyDC24V, ±10%
Current consumption0.65W (24V power supply)
Accuracy0.2, 0.5 % F.S. (25℃±2℃)
Temperature drift≤25ppm/℃ (-20-+60℃)
Response time≤200mSec.
Isolation voltage1500VAC/1min, among input, output, power supply
Insulation resistance≥100MΩ among input, output, power supply
Operating temperature-20-+70℃
Dimension114.5x99x12.7mm
EMC CompatibilityIEC61326-1

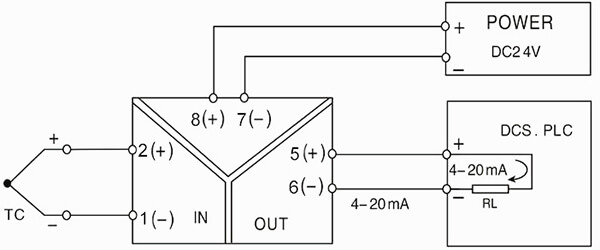

Thermocouple Signal Conditioner Typical Wiring

Thermocouple to 4-20mA 0-10V output circuit
Thermocouple to 4-20mA 0-10V output circuit

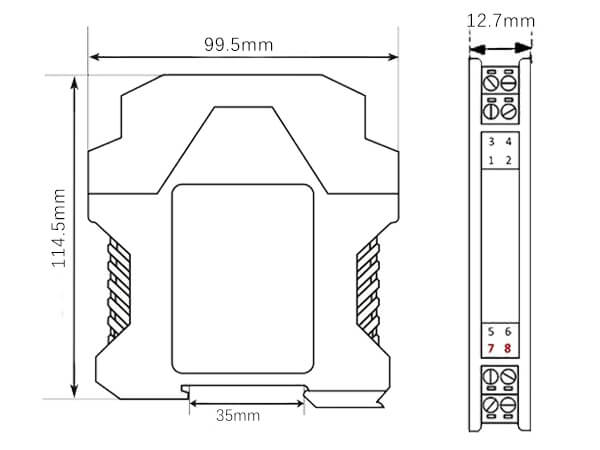

Thermocouple Signal Conditioner Dimension

thermocouple input signal conditioner size
thermocouple input signal conditioner size

Additional information

Weight0.08 kg
Dimensions11.4 × 9.9 × 1.25 cm
INPUT TYPE

Type-K, Type-J, Type-T, Type-E, Type-S, Type-E, Type-B

INPUT TEMP. RANGE

0-100℃, 0-175℃, 0-200℃, 0-250℃, 0-300℃, 0-400℃, 0-600℃, 0-800℃, 0-900℃, 0-1000℃, 0-1200℃, 0-1300℃, 0-1600℃, 600-1800℃, 0-500℃

OUTPUT

4-20mA, 0-5VDC, 0-10VDC, 0-20mA

POWER SUPPLY

24VDC

INPUT-OUTPUT CHANNEL

1x Thermocouple signal input, 1x DC Current/Volt. output.

Package Including

1 Unit x Isolated Thermocouple Signal Conditioner Single Input Output
1 Set x Professional User Manual

VIP Note

ALL the combinations may NOT be valid!! Regarding measure temperature range required NOT listed, please mail us your temperature range value. Thank you!
