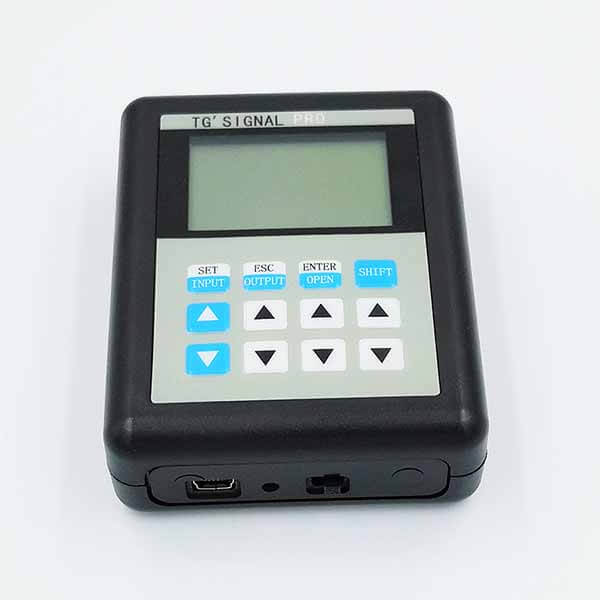

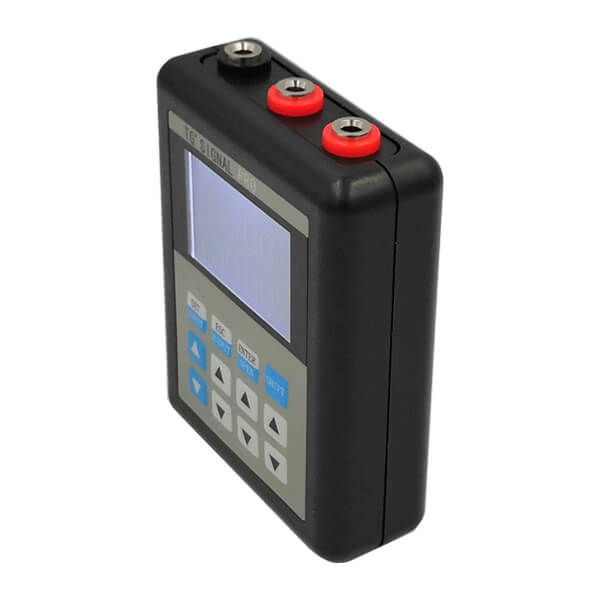

4-20mA 0-10V 24V Voltage Current Signal Generator

Original price was: $80.65.Current price is: $67.95.

BRT SM-420 TG Signal Pro Analog DC current voltage signal simulator generator is designed for 0-24mA, 0-12V, 24V analog signal measurement, simulation and calibration, it is a low-cost reliable analog process controlling signal calibrator or 4-20mA simulator. This simulation and debugging meter can generate and simulate dc current voltage signal from various types of transmitters or sensors, meters, etc., and it is widely used in 4-20mA sensor or transmitter signal simulation, 2-wire 4-20ma current loop signal simulation, meters and instrument signal debugging, PLC, valve, frequency converter signal adjustment, etc.

In stock

Description

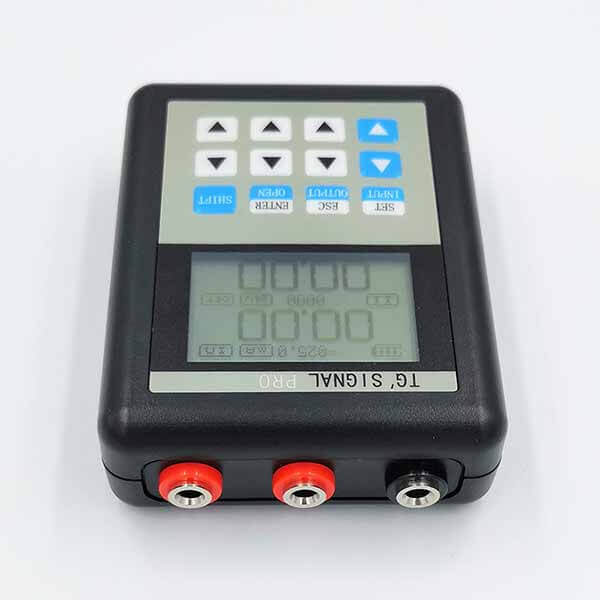

BRT SM-420 TG Signal Pro analog dc current voltage signal generator simulator can output and measure 24V 0-5V 0-10V 0-20mA current voltage signal, etc. It has following functions: output programming function, measuring range signal conversion, automatic stepping, split output function, etc. It can output and measure 0-20mA or 4-20mA current signal, 0-12V voltage signal, 24V signal, curve signal output. The 128*64 Graphic LCD screen, 4mm standard connection socket makes it is easy to use and widely used in industrial site and lab.

Main Features
• Active current output range:  0-24mA, accuracy 0.01mA, max. load 750Ω.
• Passive current output range: 0-24mA, accuracy 0.01mA, max. external power 30V.
• Voltage output range: 0-12V, accuracy 0.01V.
• Have current or voltage signal automatic output function, can be set into three modes: single rise, single down and circulation.
• 24V voltage output, driving current 24mA, have loop current display.
• Current input testing range: 0-24mA, accuracy 0.01mA.
• Voltage input testing range: 0-30V, accuracy 0.01V.
• Have input to output conversion function: voltage to active current output mode, 4-20mA passive mode, current to voltage conversion mode.
• Fast output mode: have shortcut key to enter into fast output mode required.
• User-defined output function, user can set upper limit value and lower limit value.

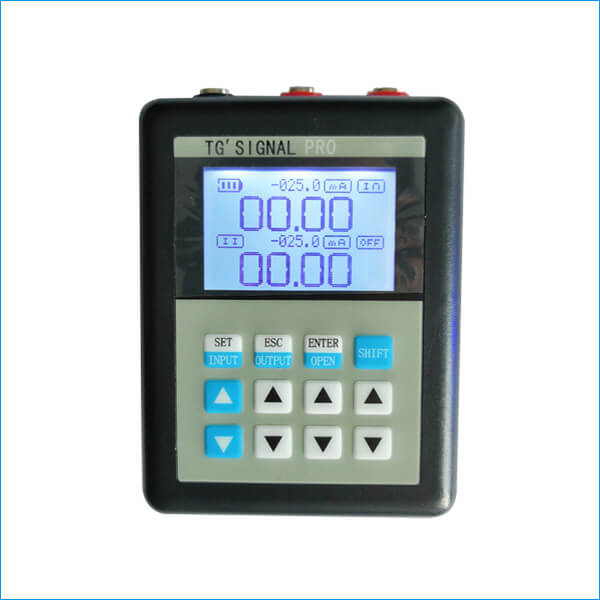

• 128*64 Graphic LCD screen can display various words; backlit LCD display makes it is easy to use in the conditions with dim light.
• Using original high performance low power consumption MCU, power management IC which extend the battery endurance.
• Have large capacity re-chargeable built-in Polymer Lithium Battery.
• Input, output terminal protection circuit embedded to avoid the damage caused when there is reverse connection.
• In different modes, there are prompts in screen to remind users corresponding connection guide.
• CE, RoHS Certified. Widely used as handheld portable multifunction signal generator.

General Parameters

Battery power supply:Polymer Lithium Battery 3.7V 2300mAH
Power consumption:20-200mA (based on the output signal)
Display:LCD display with adjustable backlight.
Current output:Active current output range:
0-24mA, accuracy 0.01mA, max. load 750Ω.  Accuracy: 0.1% F.S.
Passive current output range:
0-24mA, accuracy 0.01mA, max. external power 30V.
Have short-circuited protection.
Voltage output:0-12VDC, max. 24mA current, accuracy 0.01V, 0.1% F.S.
24V voltage output, driving current 24mA, error grade 10% F.S.
with loop current display. Have short-circuited protection.
Current measuring:0-24mA, accuracy 0.01mA, input impedance 100Ω, 0.1% F.S.
Voltage measuring:0-30V, accuracy 0.01V, input impedance 2.5MΩ, 0.2% F.S.
Operating temp. range:0~50℃ (32 to 122℉)
Operating humidity:<85% (relative humidity)
Storage temperature:-20 to 60℃ (-4 to 140℉)
Storage humidity<85% (relative humidity)
Dimension:90 x 78 x 28mm
(3.54″ x 3.07″ x 1.10″)
Weight:500 g
Accessories:Meter packet x 1 unit

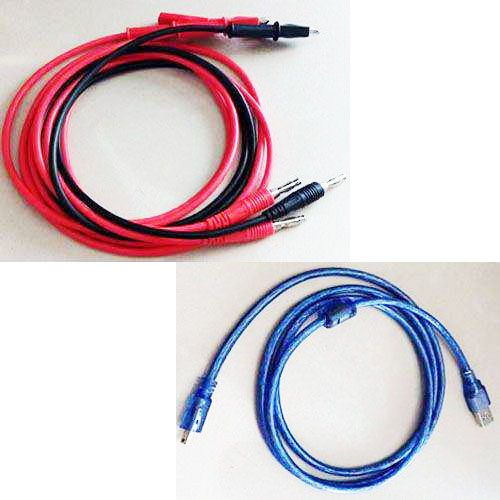

Standard 4mm banana-alligator testing cable x 3pcs
Type-T USB cable x 1pcs

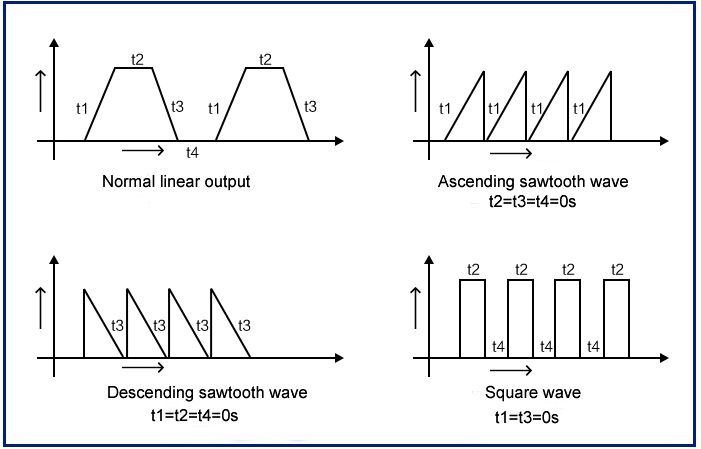

TG Signal Pro Analog Current Voltage Signal Automatic Output Wave Forms Mode

"<yoastmark

0-10V 4-20mA 24V Signal Simulation and Measurement Applications

 2/3 Wire DC Current Voltage Output
2/3 Wire Sensor Signal Measurement
DC Current Voltage Simulation
4-20mA 0-5V 0-10V Signal Simulation & Measurement

Additional information

Weight0.85 kg
Dimensions9.0 × 7.8 × 2.8 cm

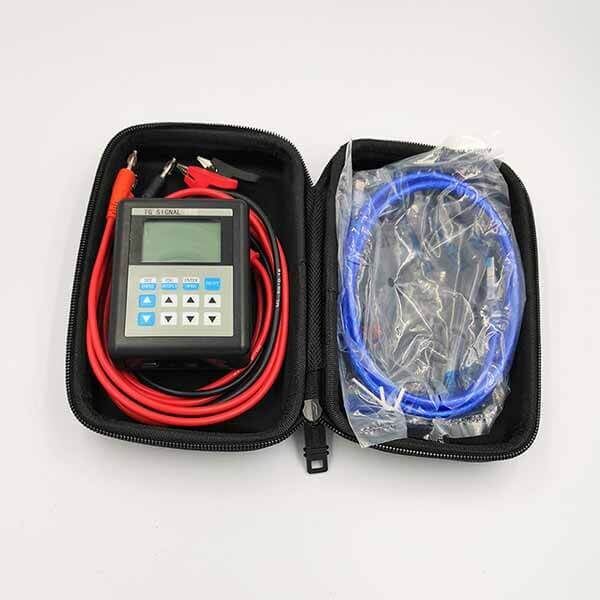

Packing List

1 Unit x Original DC Current Voltage Signal Generator 24V Current Voltage Simulator (CE, RoHS Certified)
1 Set x Testing Clips
1 Unit x USB Cable for recharging power

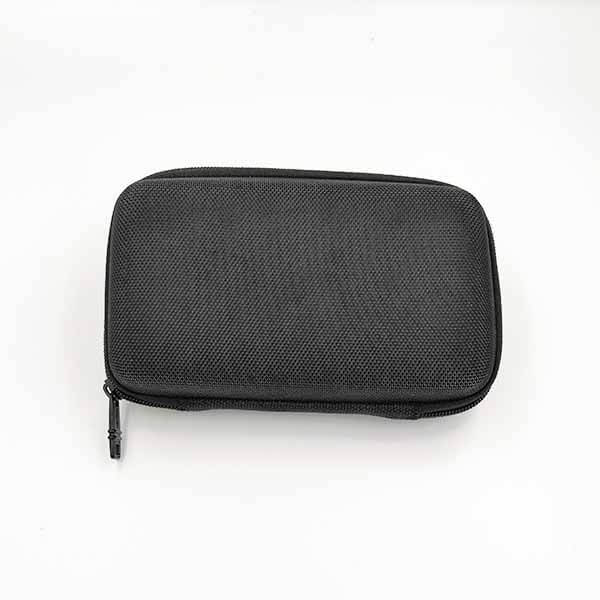

1 Pcs x High quality protection meter bag
1 Set x Professional User manual (English)

Highlights

CE, RoHS Certified; Pocket size portable; Competitive Price.
