Description
Adjustable Analog 4-20mA Current Source Signal Generator Testing:
Main Features
• Have backside cover for dust-proof.
• Potentiometer knob calibration, output is adjustable through the knob, fast response.
• Highly sensitive adjustment by multi-turn potentiometer, adjusting step: 0.1mA.
• Used as 4-20mA current source signal, 4-20mA generator, vale adjustment, meters testing, etc.

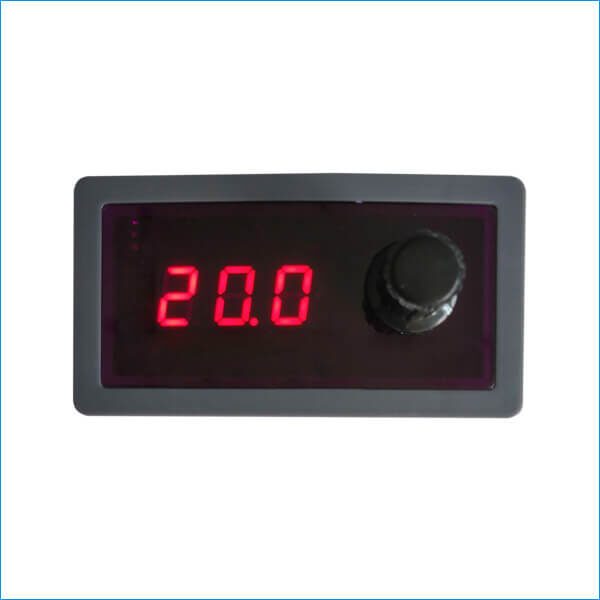

• Clear LED RED digit display can be used in industrial field with different lighting conditions.

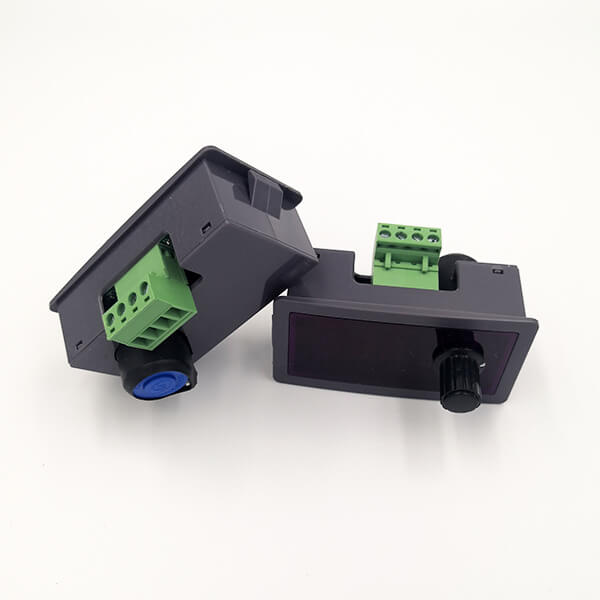

• Standard panel-mounted size, easy to do further integration.
• Output precision can be calibrated by adjusting the multi-turn potentiometer inside the signal generator.
Technical Parameters
| Output range | 4-20mA, max. output 3.9-20.4mA (*if need 0-20mA out, do notify us.) |
| Output calibration | calibrated through precision reliable potentiometer inside |
| Output adjustment | multi-turn potentiometer: 5×360 rotation angle |
| Adjusting steps | 0.1mA |
| Power supply | 12VDC or 24VDC, (±25% range) |
| Power consumption | ＜1.5Watt |
| Load impedance | 0-350Ω @ DC12V power supply; 0-800Ω @ DC24V power supply. |

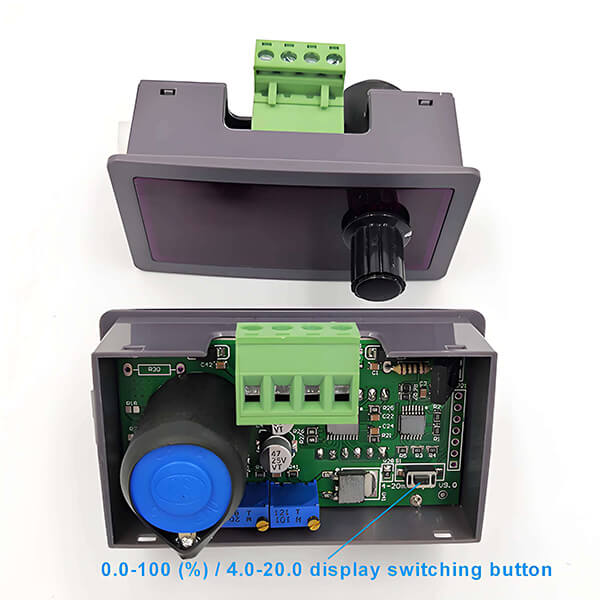

| Display mode | 4.0-20.0 (mA), 0-100(%), 0-50(Hz) switchable via buttons inside. |
| Protection function | short-circuit and polar reversion connection protection in power input terminal. |
| Front side size | 80mm x 42mm |
| Panel cut-out size | 76mm x 40mm |
| Operating temp. range | -10-+60℃ |
| Storage temp. range | -20-+70℃ |
| Humidity | 85% R.H. Non-condensation |
• Output testing: short circuit the 4-20mA output terminals, then use multi-meter to test it.
• Applied in: 4-20mA current source signal generator, valve calibration, frequency converter control, meter’s testing, analog transmitter output, emitting diode testing.

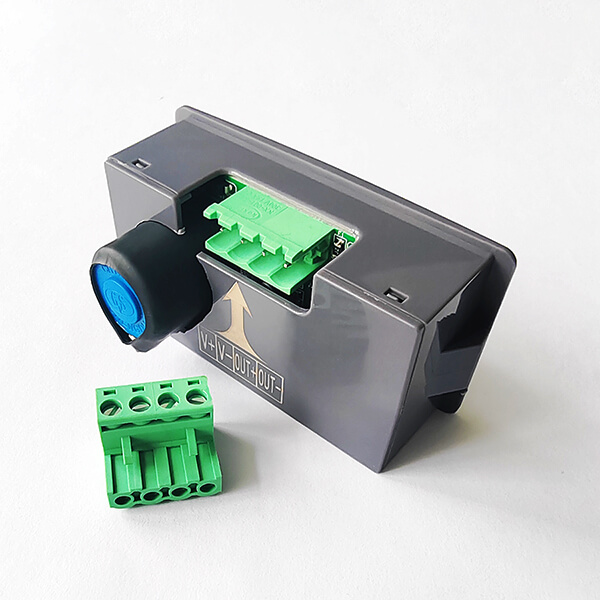

4-20mA Current Source Generator Wiring
4-20mA Source Signal Generator Referential Applications
*Note:
BRT 4-20mA-GEL: Multi-turn Rotation: the adjusting knob rotation angle is 5 x360 degree from 4mA to 20mA, the output signal adjusting step is smaller.
