RTD Cu50 PT100 Simulator Resistance Generator

$40.00 $38.00

BRT RTD SMU Simulator is a stable small size resistance RTD generator which can be used as a RTD Cu50 PT100 calibrator or PWM frequency generator, it generates RTD thermal resistance, resistance and PWM signal. User inputs temperature signal value, that RTD simulator outputs corresponding RTD PT100 Cu50 signal immediately. The RTD PT100 temperature signal output range:-200-+850℃, Cu50 temperature range: -50-+150℃, accuracy is 0.1℃, resistance range: 10-500Ω, accuracy 0.01Ω, PWM frequency range 1Hz–100KHz with 1%-99% duty cycle. It is easy to operate by pressing the keys and widely used as RTD calibrator in industrial site.

Description

RTD Cu50 PT100 Simulator Resistance Generator Main Parameters
-Operating voltage: 7-12VDC
-Operating current: <50 mA
-Dimension: 57*45*20 mm (LxWxH)
-Output signals:

OutputMax. OutputOutput RangeAccuracy
RTDPT100-200-+850℃0.1℃
RTDCu50-50-+150℃0.1℃
Resistance500Ω10-500Ω0.01Ω
PWM Frequency100kHz1Hz–100KHz1Hz
Duty Cycle99%1%-99%1%

RTD Cu50 PT100 Simulator Resistance Generator Terminals
P1 Terminals: Power supply
VDD: Power supply (7-12VDC) +
GND: Power supply –

P3 Terminals: Output signal
Res: output 10~500Ω resistance
P1: output PWM signal
GND: Power supply –

RTD Cu50 PT100 Simulator Resistance Generator Operating Guide
Keys Definition
UP: previous page
DOWN: next page
ADD: Add key
SUB: Subtract key
FUN: Functional key (Select the data operation byte.)

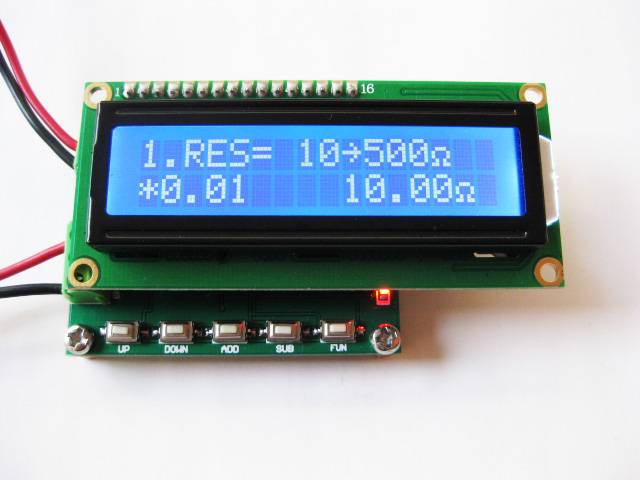

1) Adjust 10~500Ω Resistance
LCD Interface display:
First line: “1. RES= 10~500Ω
Second line: ” *0.01   0.00Ω

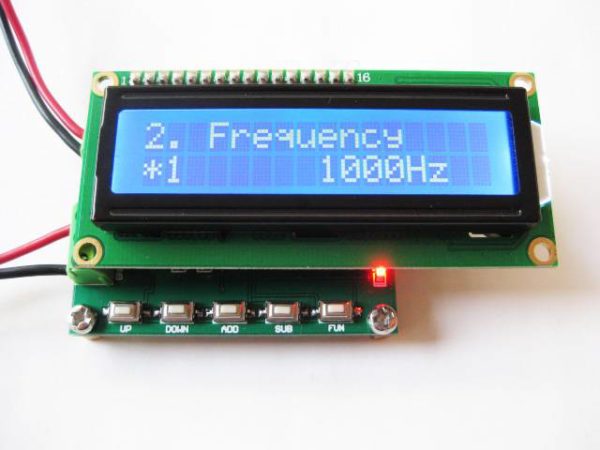

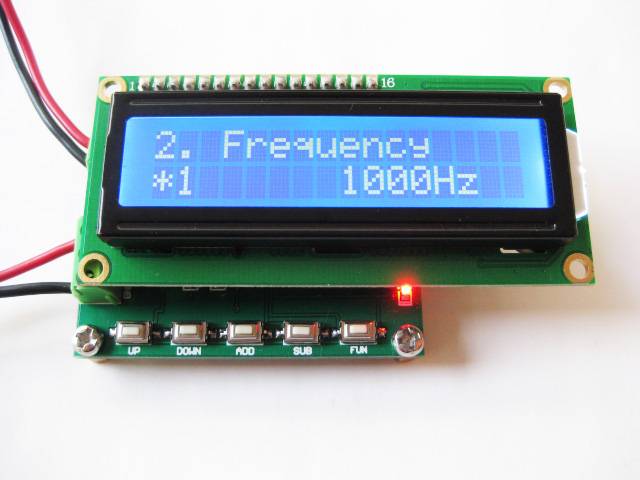

2) Adjust PWM frequency signal 1Hz~100KHz
LCD Interface display:
First line: “2. Frequency
Second line: “ *1 1000Hz

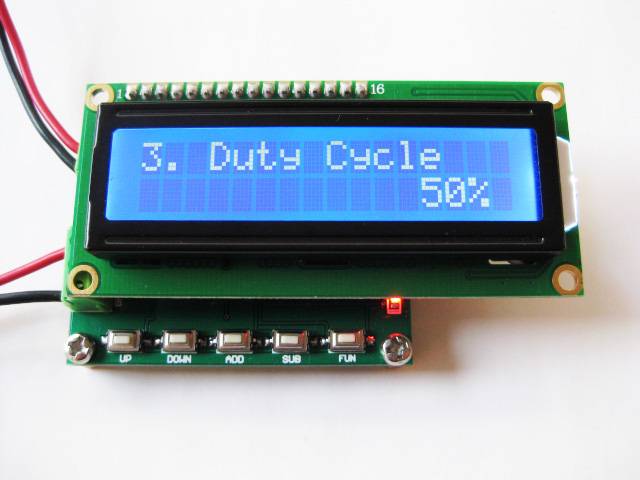

3) Adjust duty cycle of PWM frequency signal 1Hz~100KHz
LCD Interface display:
First line: ” 3.Duty Cycle
Second line: “ 50%

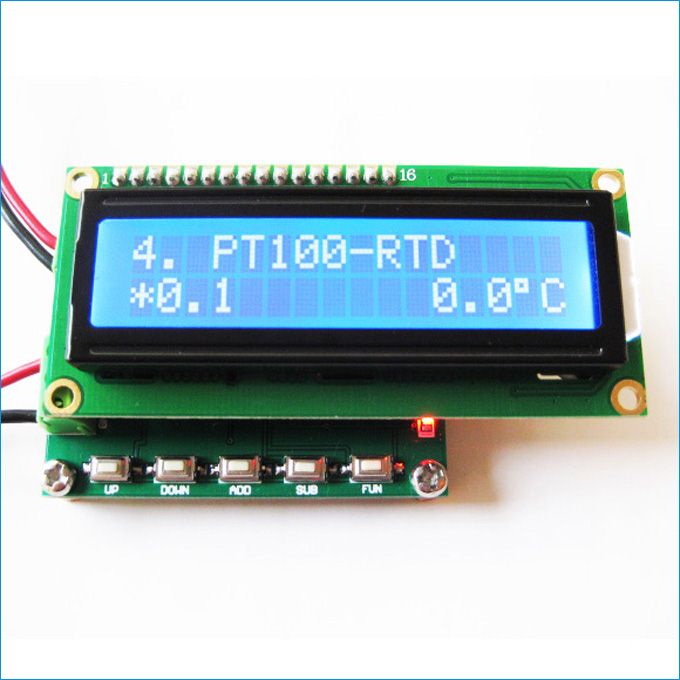

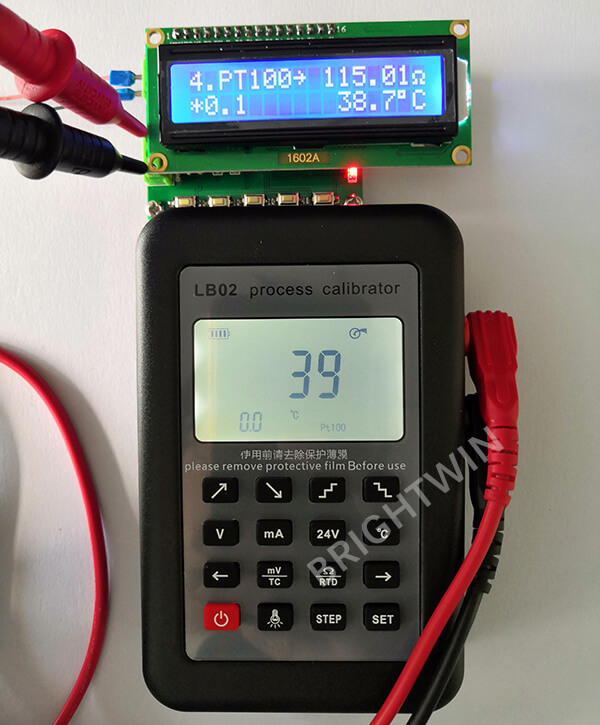

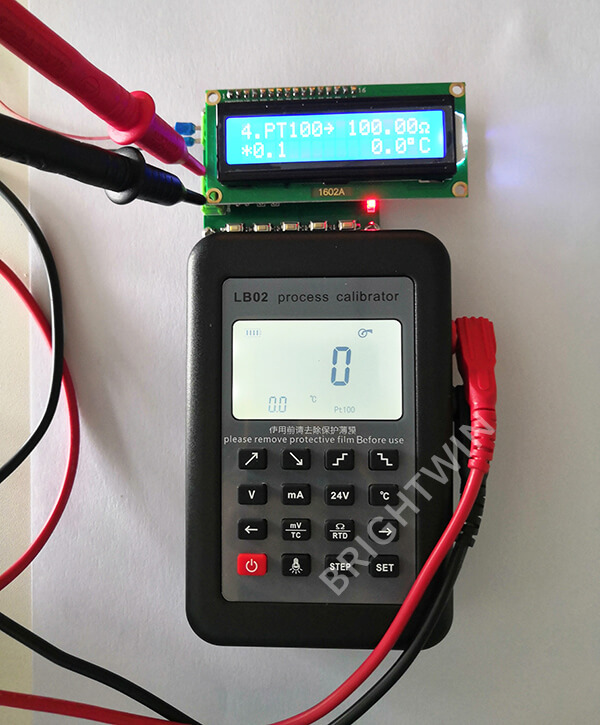

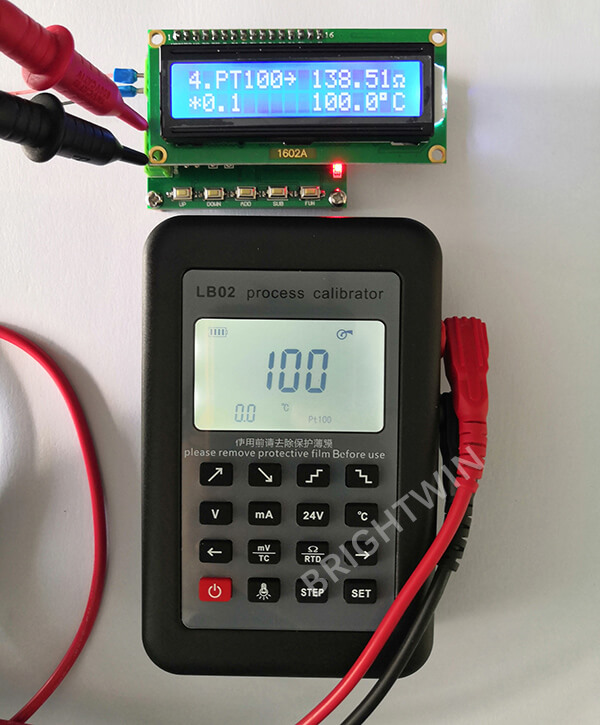

4) Adjust RTD PT100 temperature signal
LCD Interface display:
First line: “4.Pt100-RTD
Second line: “ *0.1 0.0’C

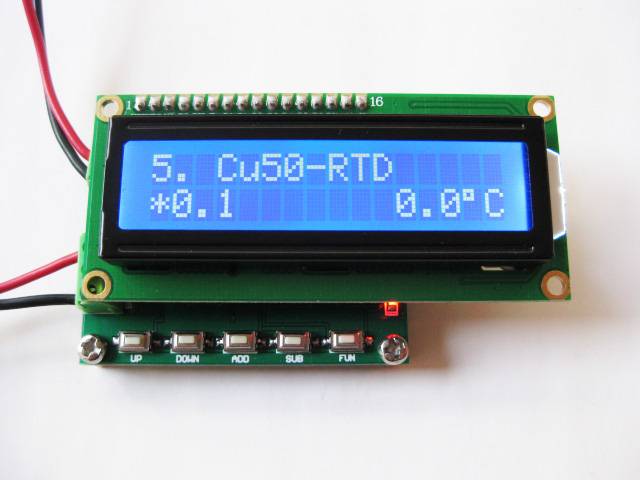

5) Adjust RTD CU50 temperature Signal
LCD Interface display:
First line: “ 4.Pt100-RTD
Second line: “ *0.1 0.0’C

Additional information

Weight0.1 kg
Dimensions6 x 6 x 5 cm
Packing List

1 Unit x Original RTD Cu50 PT100 Simulator Resistance Generator Module

VIP Note

Securely shopping without any Paypal/bank charge! Get credit points, get amazing discount price by Registering Your Account! Buy with confidence!

Output

RTD PT100:-200-+850℃, Cu50: -50-+150℃, Resistance: 10-500Ω, PWM (1%-99% duty cycle) 1Hz-100kHz.
