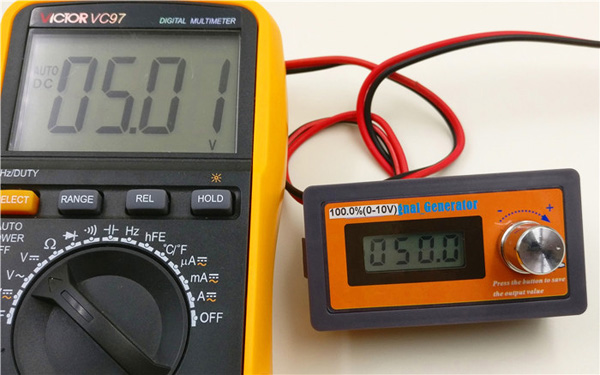

0-3.3V 0-5V 0-10V Voltage Signal Generator LCD Display

$25.00

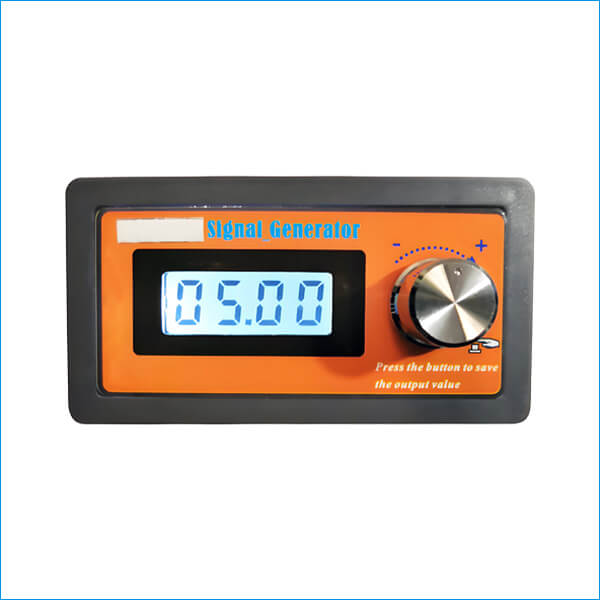

BRT 10VG-HM4 Voltage Signal Generator is an accurate 0-3.3V, 0-5V, 0-10V voltage controller or voltage source with LCD display. It’s output is adjustable through encoder embedded, and output signal can be displayed in the LCD screen in three types: 0-3.3V or 0-5V or 0-10V voltage value display; 0%-100% percentage display; 0-50(Hz) display. It’s operating power supply is 4-24V wide range. Standard panel-mount shell and accurate adjustable output make it become an essential voltage source generator kits for developers.

Clear

Description

BRT 10VG-HM4 Voltage signal generator output range can be 0-3.3V, 0-5V, 0-10V, and its output signal has three types of display modes: actual voltage value display; 0%-100% percentage display; 0-50(Hz) display. It can also output programmable automatic circular curves. That voltage generator is also a voltage source or controller with LCD display, and widely used in PLC, variable frequency drive calibration.

Features & Benefits
– 0-10V adjustable output, customized 0-5V or 0-3.3V output are available.
– LCD Display mode: voltage value display, 0-100% display, 0-50.0 (Hz) display.
– Encoder adjustment, can be manual adjustment or automatic programmable output: dynamic output continuous curve (Rotating encoder adjusting knob and pressing the button to set it).
– Display accuracy (Adjustment): 0.1 (Fine adjustment) or 1.0 (Rough adjustment).
– Have power supply reverse polarity protection, and output short-circuit protection.

Technical Specifications

Power supply:4-24VDC ( power supply voltage must be 2V higher than the output, e.g.: output 0-5V, please use 7V or higher power supply.)
Accuracy:±0.05V
Output max. current:200mA
Output:0-10V or 0-5V or 0-3.3V. Can be programmed to output curve.
Dimension:79.5x42x23.5mm (LxWxH)
Cut-out:77x40mm (LxW)

Voltage Signal Generator Programmable Automatic Circular Curve Output

Programmable Curve output of Voltage Signal Generator
Analog 0-3.3V 0-5V 10V Voltage Generator Curve Output

3.3V 5V 10V Voltage Signal Generator Wiring

DC 0-3.3V 5V 10V Signal Generator Wiring Circuit
0-3.3V 5V 10V Signal Generator Wiring Circuit

3.3V 5V 10V Voltage Signal Generator Dimension

0-3.3V 0-5V 0-10V Simulator Generator Size
0-3.3V 0-5V 0-10V Simulator Generator Size



Additional information

Weight0.08 kg
Dimensions10 x 10 x 10 cm
Output

0-10V, 0-5V, 0-3.3

LCD Display Type

Voltage Value Display, 0%-100% Percent Display, 0-50(Hz) Display

Panel Cut-out Size

77x40mm (LxW)

Packing List

1Unit x Original 0-3.3V 0-5V 0-10V Voltage Signal Generator LCD Display
