Description

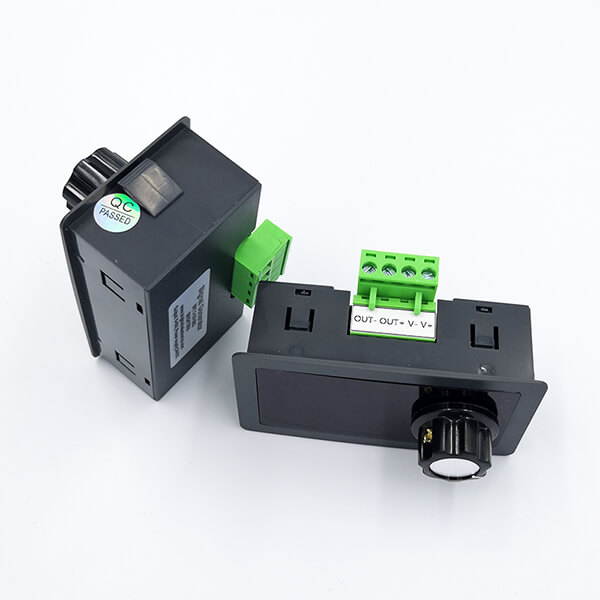

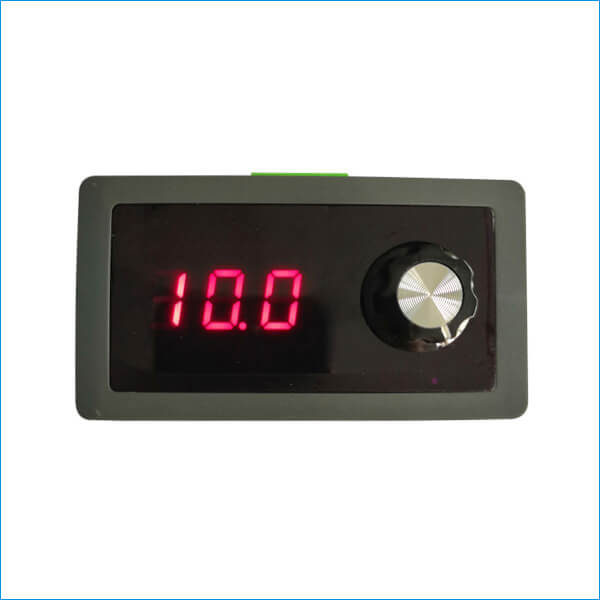

BRT 0-10VGE Adjustable 0-10V signal generator outputs 0-10V voltage signal constantly and accurately. It has a small adjusting knob with multi-turn or one-turn rotation setting. Standard panel-mounted shell, 24V operating power supply, it is an essential debugging tool for technicians. This 0-10V output generator can also be used as 0-10V controller, 0-10V signal simulator.

Main Features
•Small adjusting knob, rotation angle 5×360 degree (or 1 x 360 degree optional), fine adjustment, small adjusting steps.
•High precision potentiometer used to adjust output.
•Display 0-10V value with LED display.

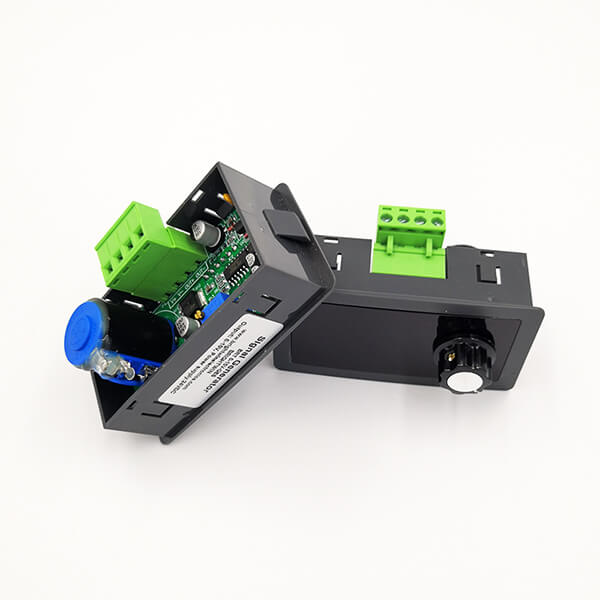

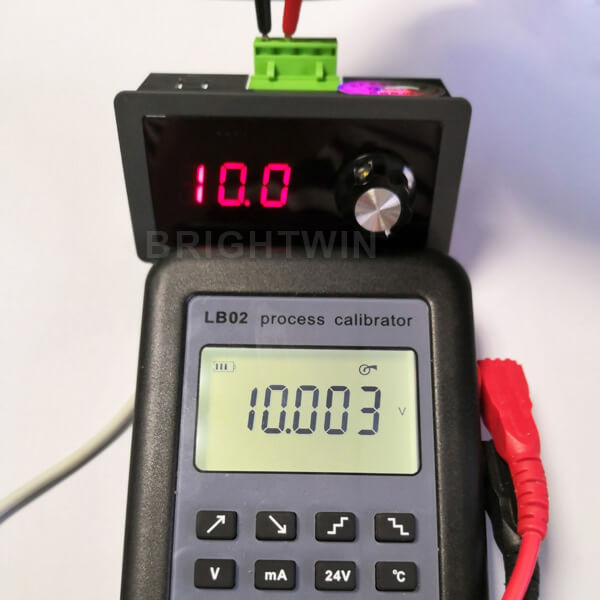

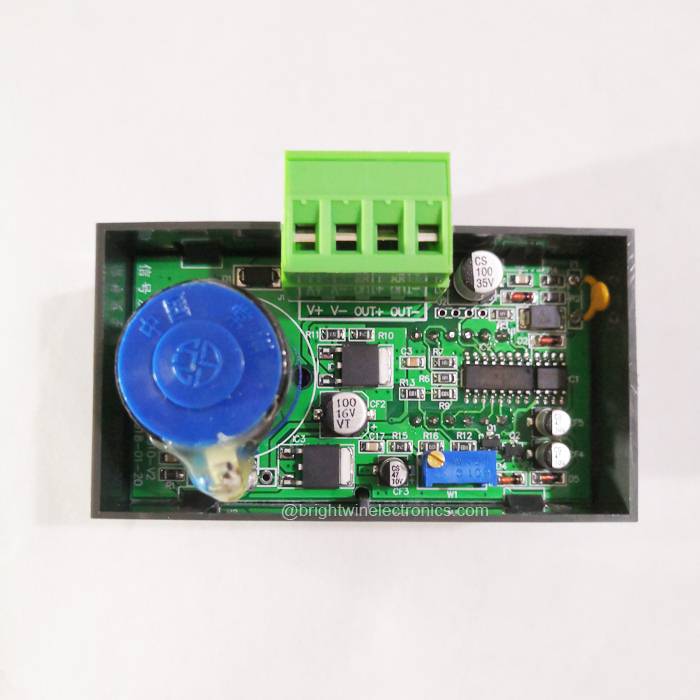

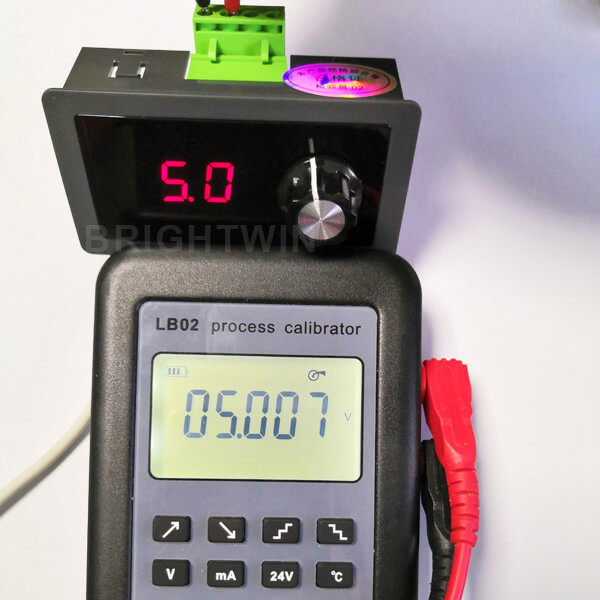

•Fast response, no delay, stable regulated constant 0-10V source output.
•Have reverse polarity protection circuit, no damage in accidental reverse connection.
•Power supply voltage: DC24V input, power consumption ＜1.5W.
•The load impedance in output terminal: ＞500Ω, constant voltage output.

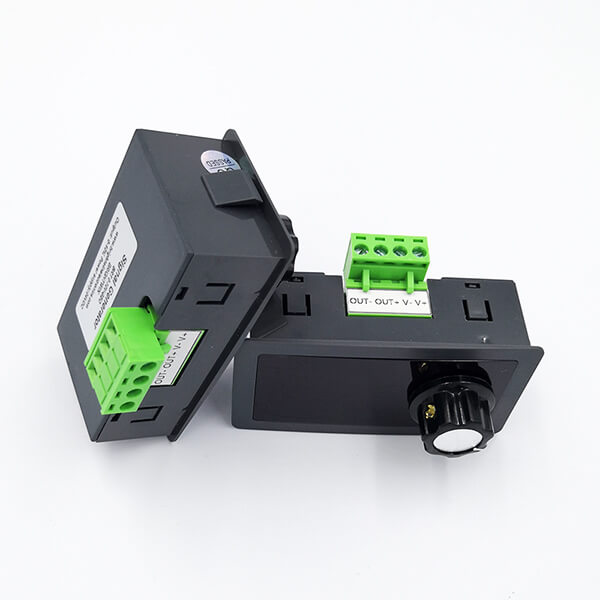

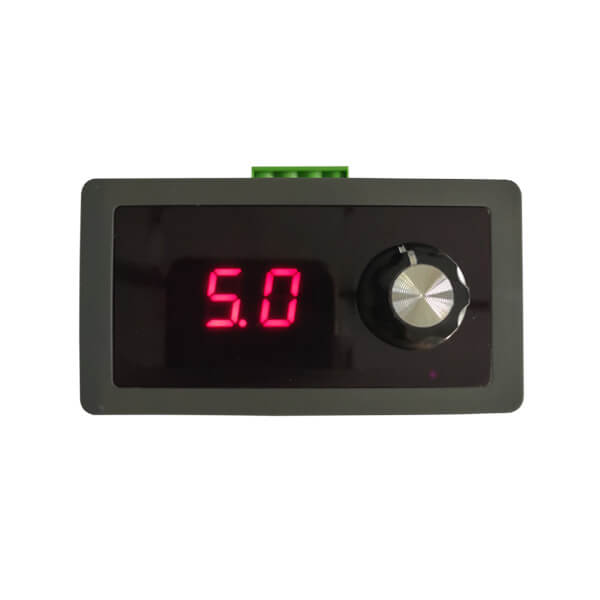

•Embedded installation is available, panel cut-out size: 76x40mm.

Typical Applications
•Using as 0-10V simulator module, multiturn precision potentiometer rotation knob, 0-10V value LED display.
•Widely applied in signal source simulation, PLC adjustment, valve adjustment, frequency changer control, meter testing, transmitter signal output, equipment controller, etc.
•Use as 0-10V constant voltage source signal to control and adjust devices, 0-10V debugging meter.

0-10V Generator Wiring Circuit

*Operating power supply is 24VDC; Knob height is 11mm.

• BRT 0-10V-GEO: One-turn Rotation Knob Type: 0-300 degree rotation from 0V to 10V output, small changing steps, have rear cover.

• BRT 0-10V-GES: Multiturn Rotation Knob Type: 5 x 360 degree rotation from 0V to 10V output, large changing steps, none rear cover.
