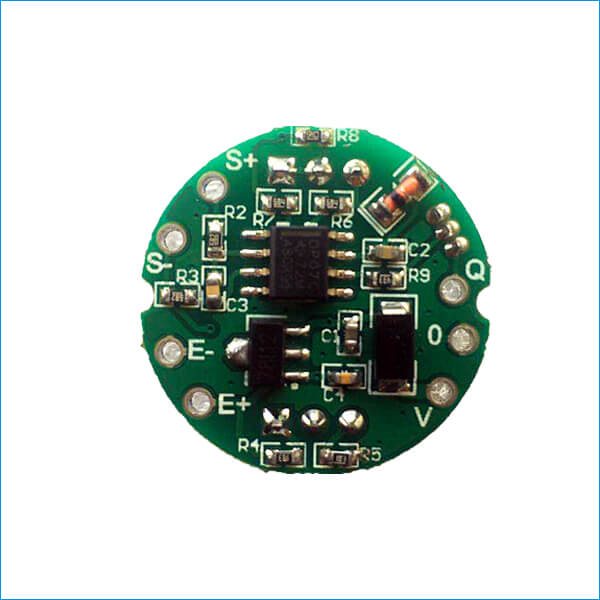

Load cell amplifier module 4-20ma out

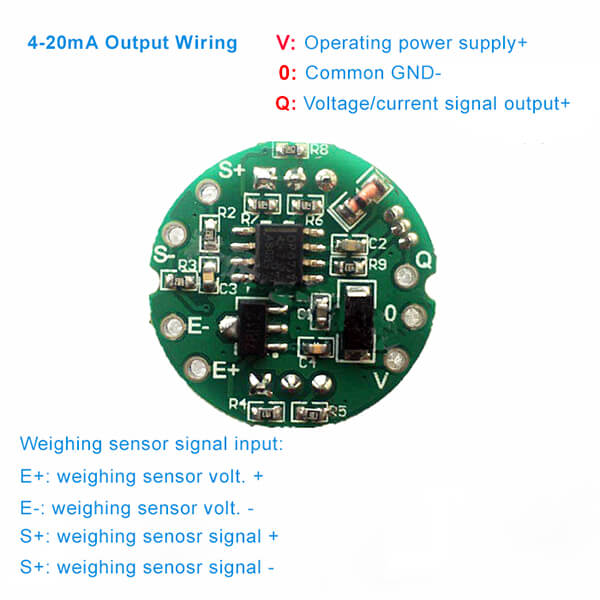

Load cell amplifier 4-20mA output wiring

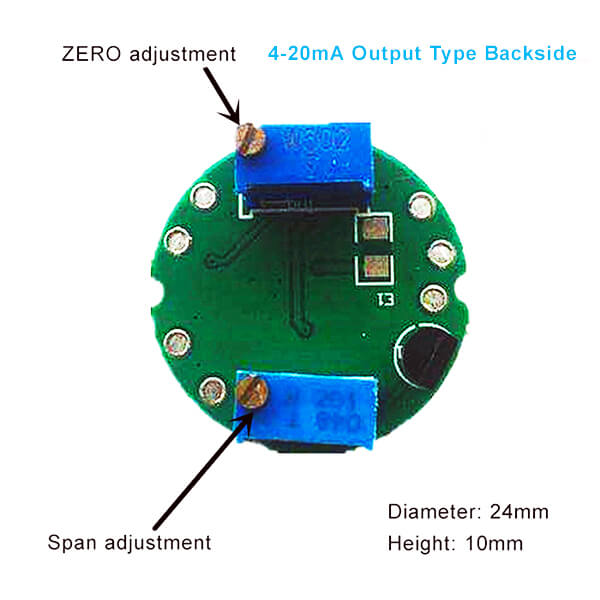

Load cell amplifier 4-20mA output backside
load cell amplifier 0-5v 0-10v output

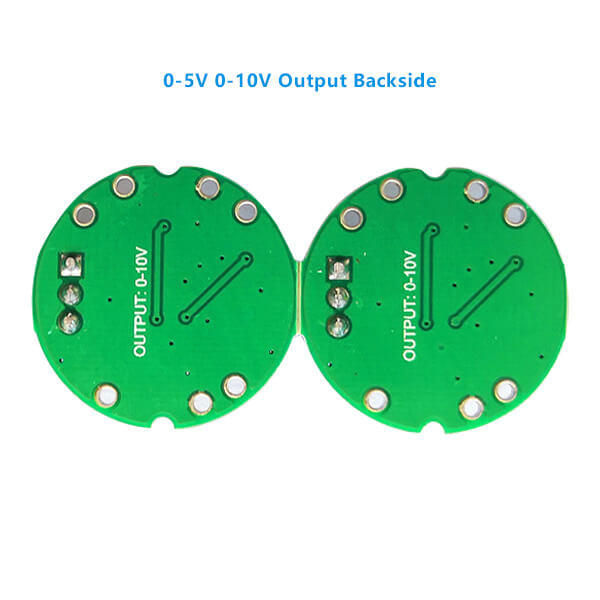

load cell amplifier 0-10V output backside

Load Cell Amplifier Module 4-20mA 0-10V Output

Price range: $13.95 through $17.50

BRT LCAM Load cell amplifier module is a small size round card full bridge load cell sensor signal conversion module. It accepts 1mV/V to 3mV/V load cell signal and output 4-20mA or 0-10V 0-5V signal. Mini size, high linear conversion, easy to integration and further development.

SKU: BRT LCAM Category: Tag:

Description

BRT LCAM Round card load cell amplifier is widely used in full-bridge weighing sensor tensile pressure sensor signal conversion and data acquisition applications.

Technical Parameters

Input signal1mV/V to 3mV/V
Input sensor typefull bridge load cell, pressure sensor, etc.
Output4-20mA or 0-10V or 0-5V
Excitation voltage nominal 12VDC, max. 5-15VDC
Working power supply12-24VDC
Adjustment Zero, Span adjustment through potentiometer
Diameter 24mm
Height10mm
Operating Humidity5%~95%RH
Operating Temperature-20 – +60 ℃

Operating Instructions

• Referential wiring method

Round load cell amplifier wiring method
Round load cell amplifier wiring method

*For more details, please contact us to get user manual.

Additional information

Weight0.25 kg
Dimensions7.9 × 4.4 × 2.6 cm
Input Sensor Type

1mV/V to 3mV/V full bridge load cell

Excitation voltage

5-15V, nominal 12V

Output

4-20mA output, 0-5V/ 0-10V output

Operating Power Supply

12-24VDC
