Description

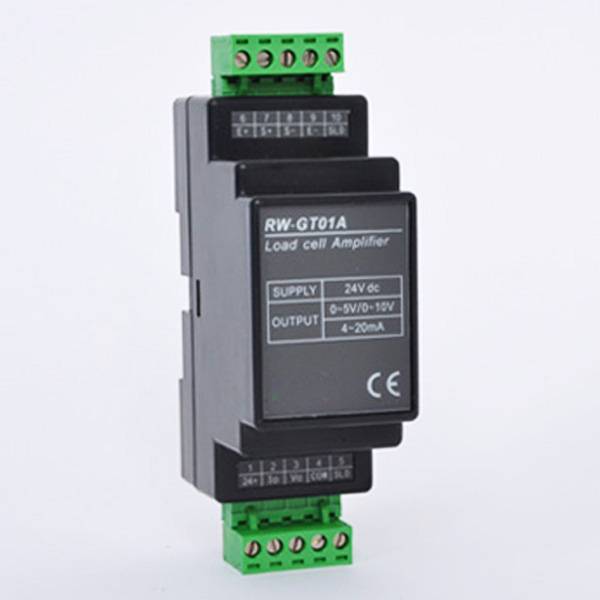

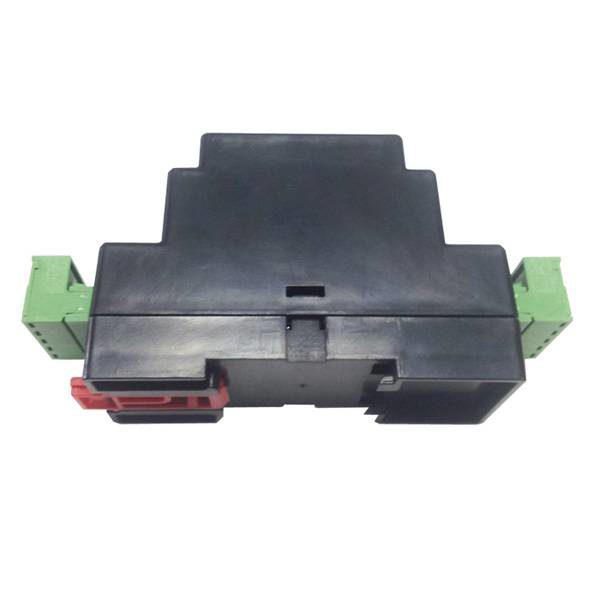

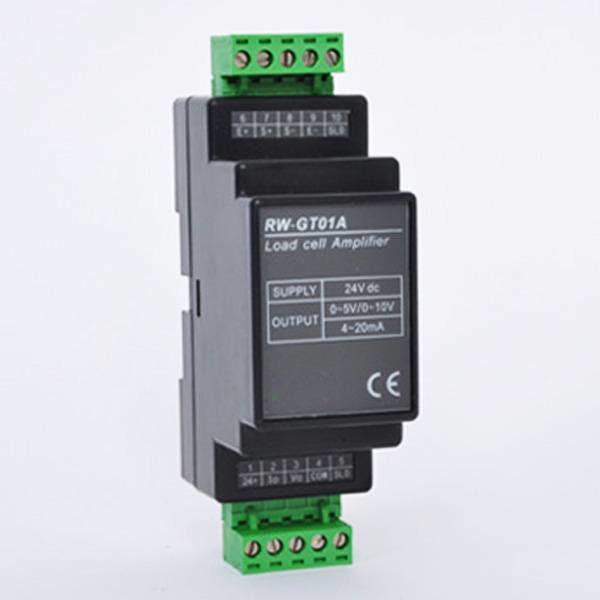

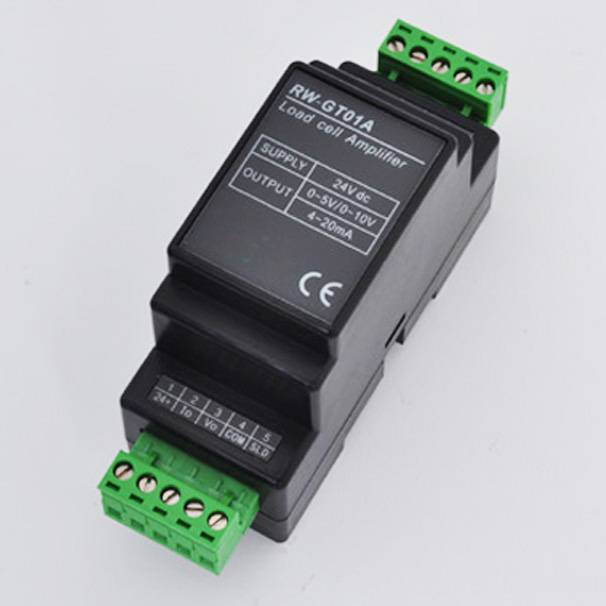

BRT RW-GT01A DIN Rail-mounted load cell amplifier accepts mV load cell signal input and converts it into 4-20mA and 0-5V/0-10V output. It can be used with various kinds of full bridge load cell to measure and monitor weight, force, tension, etc. signal. That load cell amplifier can filter and amplify mV small electric signal and convert it into standard DC current 4-20mA, voltage 0-5V, 0-10V signal for PLC or other controlling systems data acquisition. The internal embedded active low pass filter can effectively filter electromagnetic interference in industrial site.
Main Features
• 2.0mV/V±10% sensitivity, better than 0.1% F.S. accuracy.

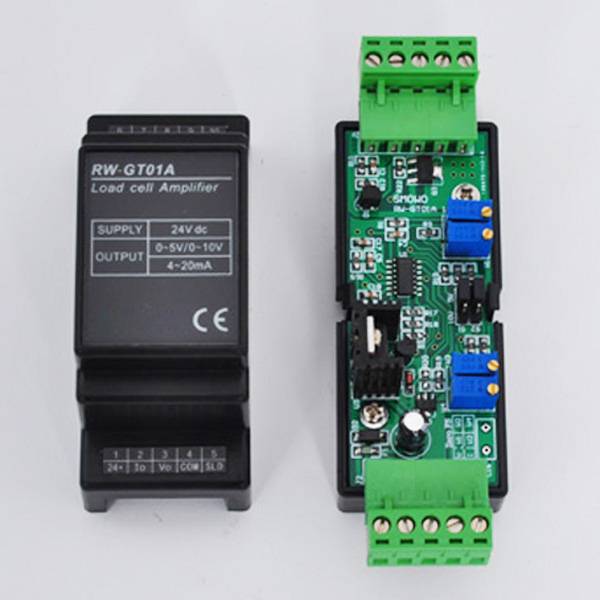

• Internal precision amplifying and conversion circuits.

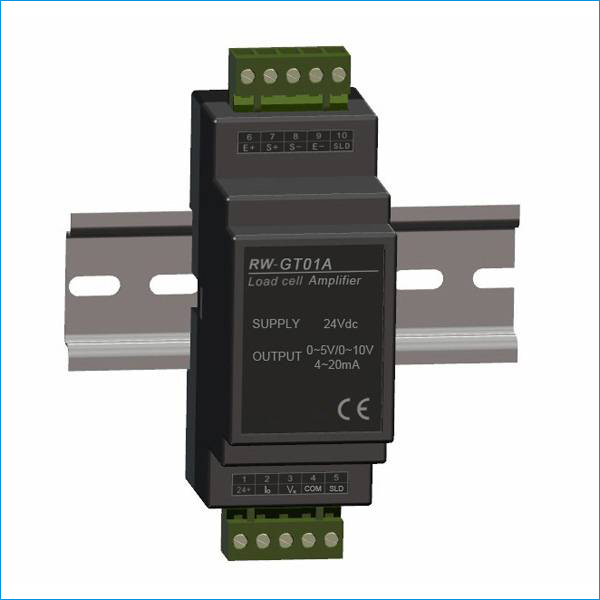

• Small size standard din rail mounted shell, pluggable wiring terminal blocks.
• 4-20mA current and 0-5V, 0-10V voltage output in one amplifier, output signal is selectable through switch button.
• Can be used with all kinds of strain gauge bridge-type load cells like weighing, tension, compression, torque, etc.
Technical Parameters
| Load Cell Sensitivity Range: | 2.0mV/V±10% |
| Signal Output: | default 4-20mA and 0-5V or 0-10V (switchable) |
| Voltage Output Resistance: | 5kΩ |
| Current Output Resistance: | 500Ω |
| Operating Power Supply: | 24Vdc(18-27Vdc range) |
| Max Power: | 4W (Parallel connection of max. 4 x 350Ω load cell at most) |
| Accuracy: | better than 0.1%F.S. |
| Voltage Zero Point Adjustment Range: | fine tune 10%F.S., coarse tune 40% F.S. |
| Voltage Full Scale Adjustment Range: | 10%F.S. |
| Current Zero Point Adjustment Range: | 10%F.S. |
| Current Full Scale Adjustment Range: | 10%F.S. |
| Temperature Drift: | better than 100ppm |
| Excitation Voltage: | 5Vdc±5%(suitable for load cell with nominal 5-12V excitation voltage) |
| Excitation Current: | 60mA |
| Wiring Mode: | screw-type wiring terminal block |
| Operation Temperature Range: | -10℃ to 50℃ |
| Storage Temperature Range: | -20℃ to 80℃ |
| Humidity: | 85%RH, non condensation |
| Net Weight: | 100g |

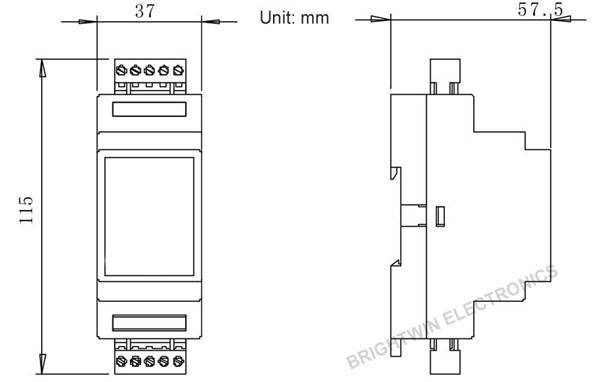

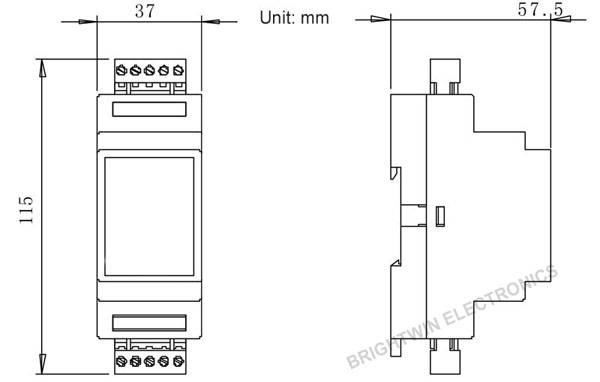

| Dimension: | 115x37x58mm(L x W x L) |

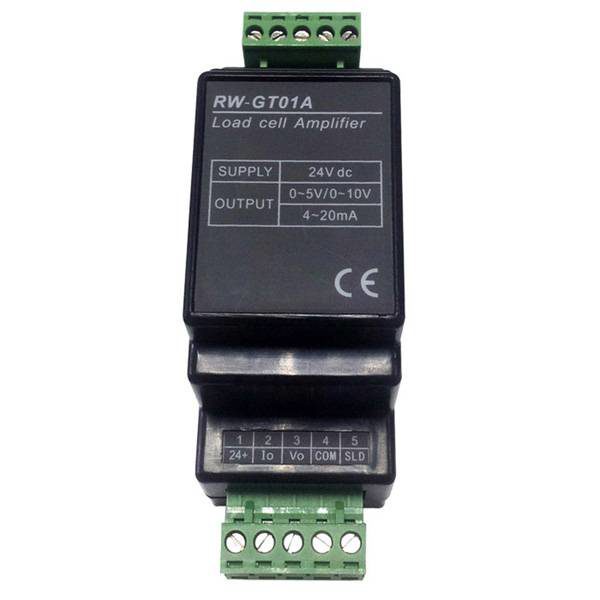

Wiring Terminal Definition
Output Signal Adjustment
